Launch a Database Instance with RDS

Creating a DB Subnet Group

ℹ️ Information: A DB subnet group is a collection of subnets that you designate for your RDS database instances within a VPC. This configuration ensures high availability by allowing Amazon RDS to deploy instances across multiple Availability Zones.

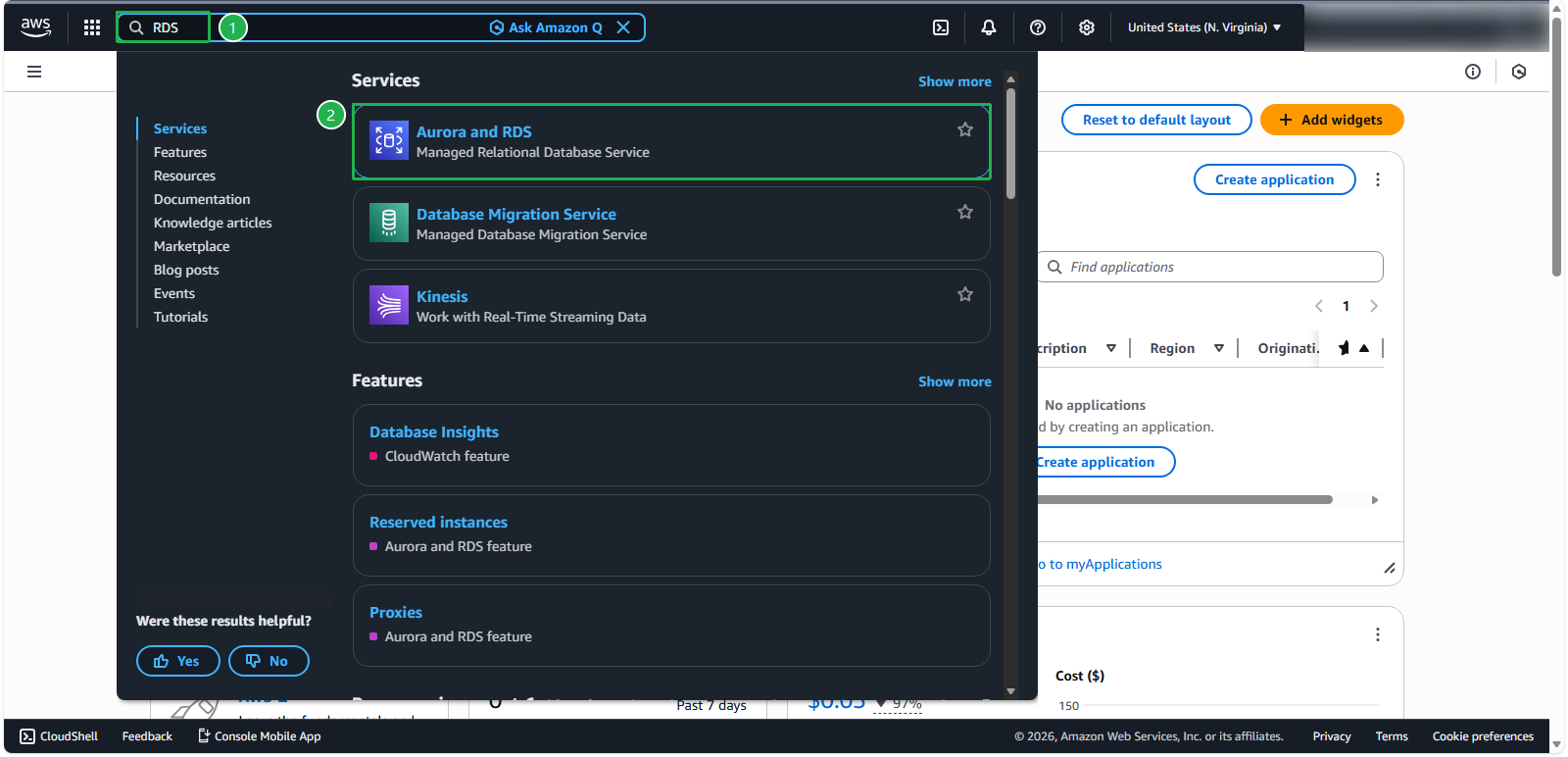

Access the AWS Management Console:

  • In the search bar, find and select RDS

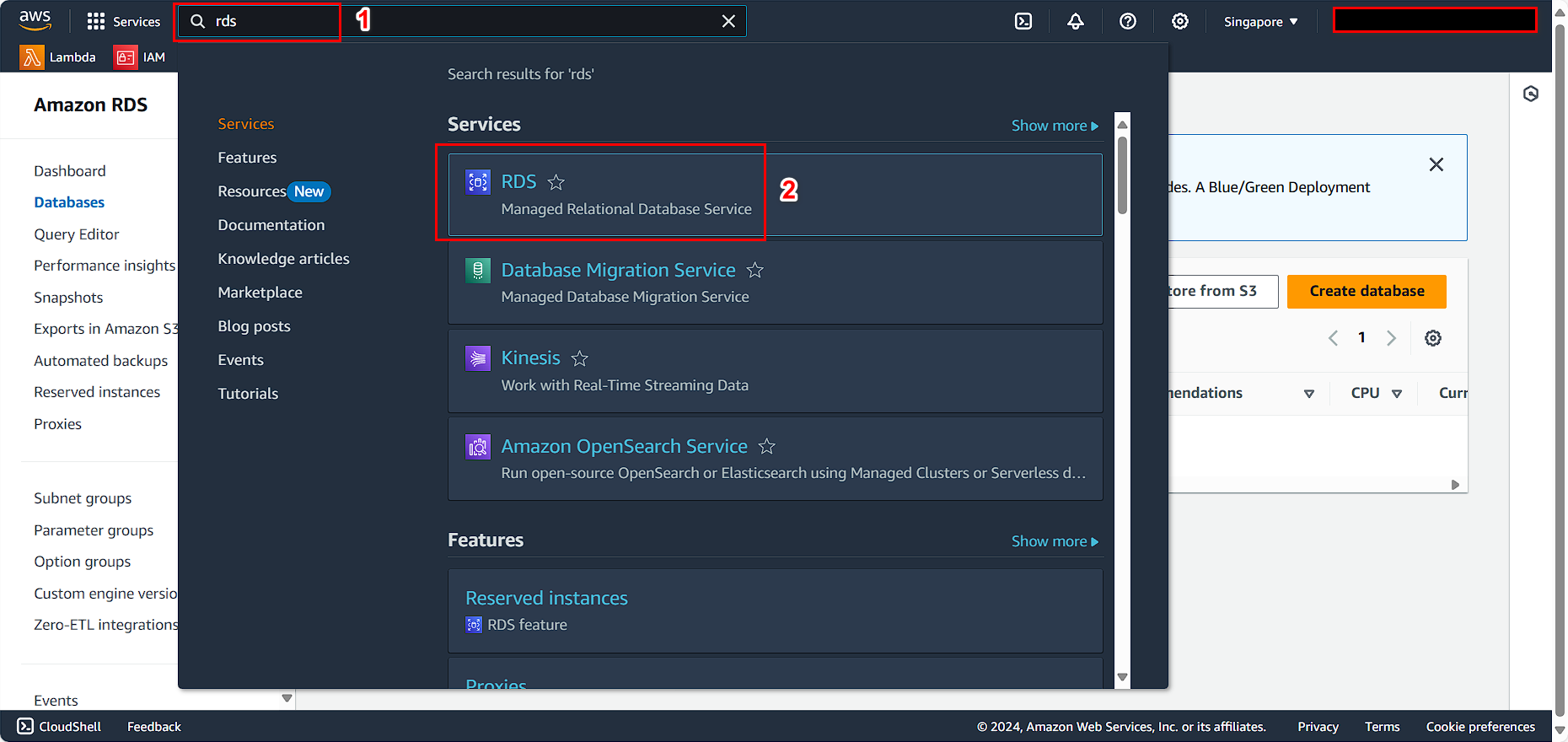

RDS Console Navigation

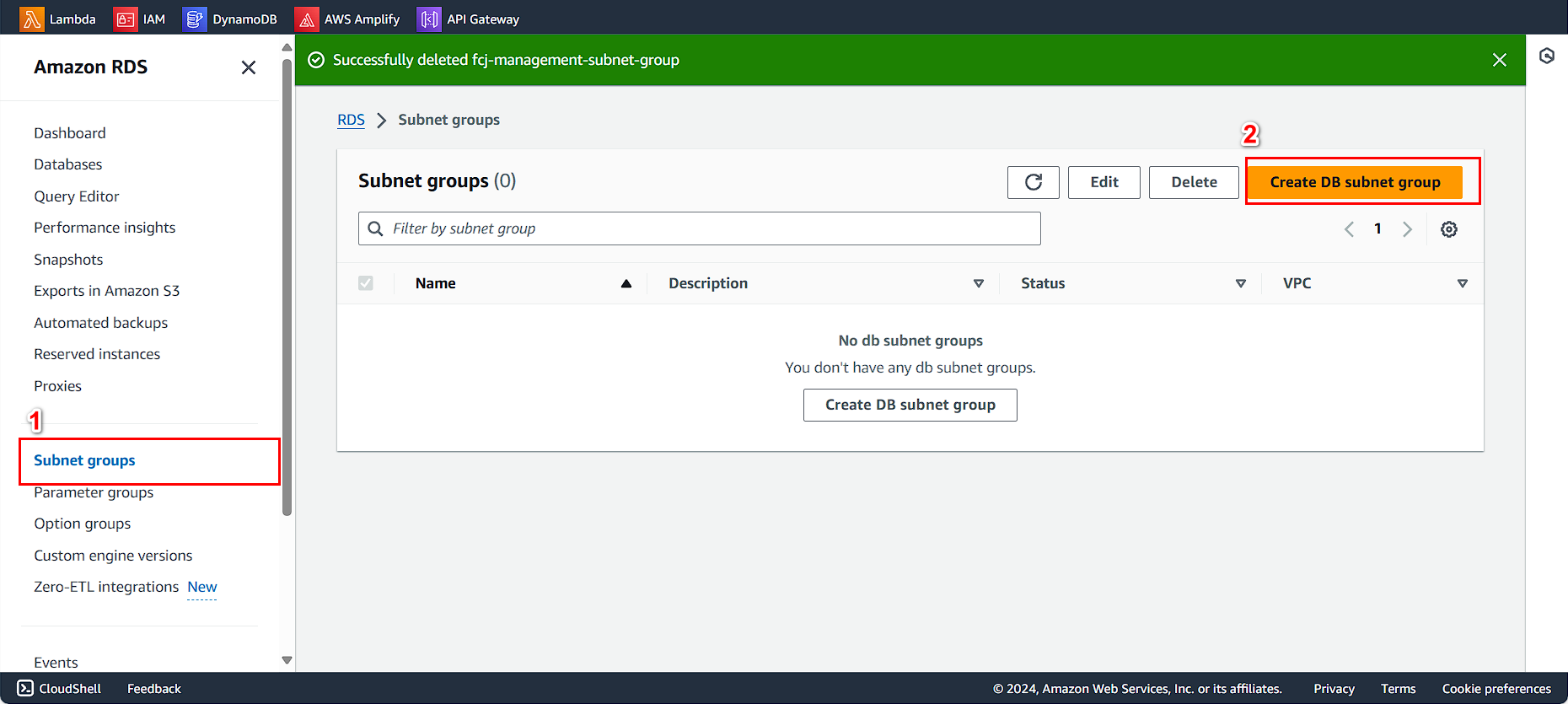

In the RDS console:

  • Select Subnet groups from the left navigation panel
  • Click Create DB subnet group

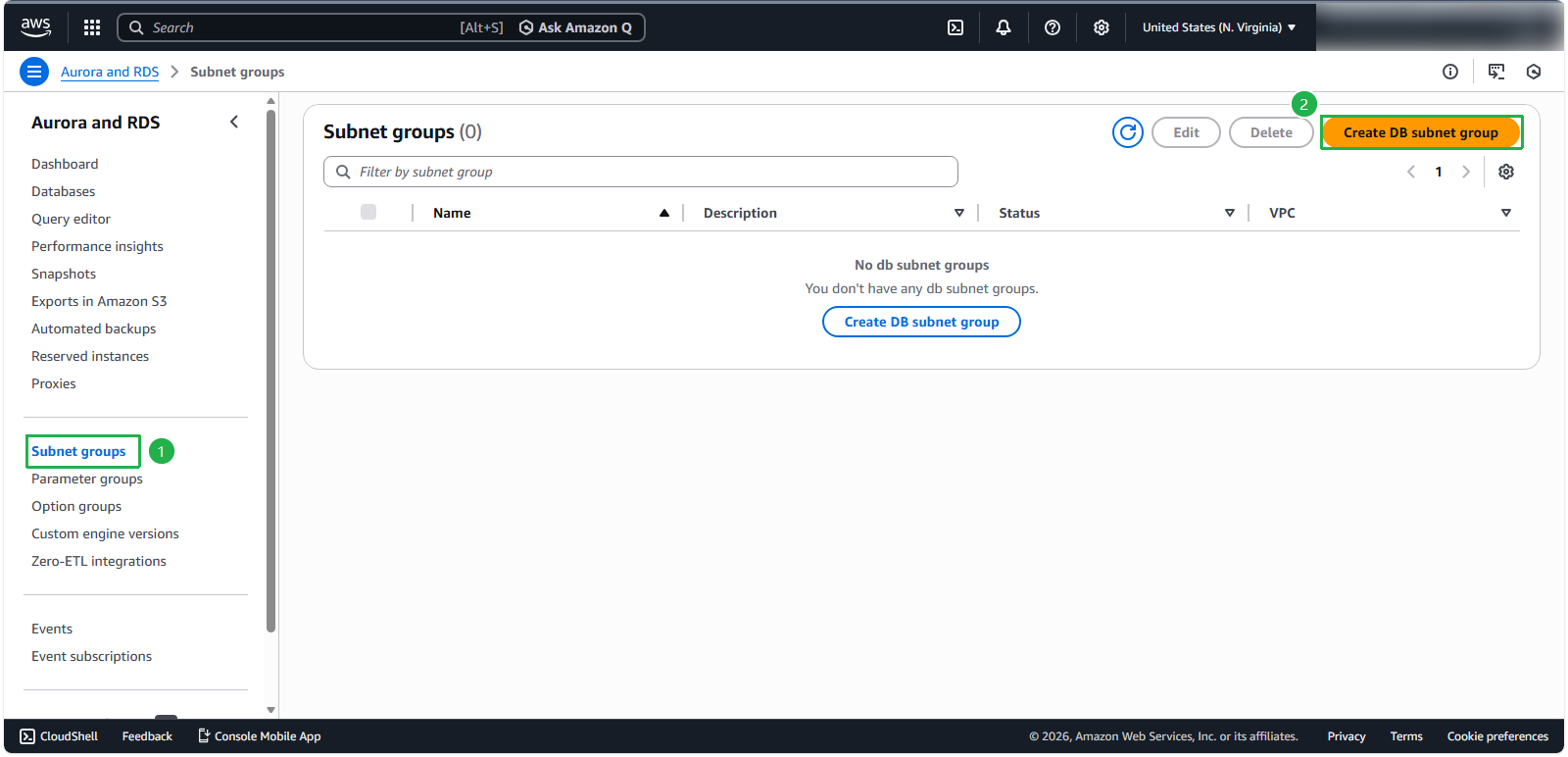

Create DB Subnet Group

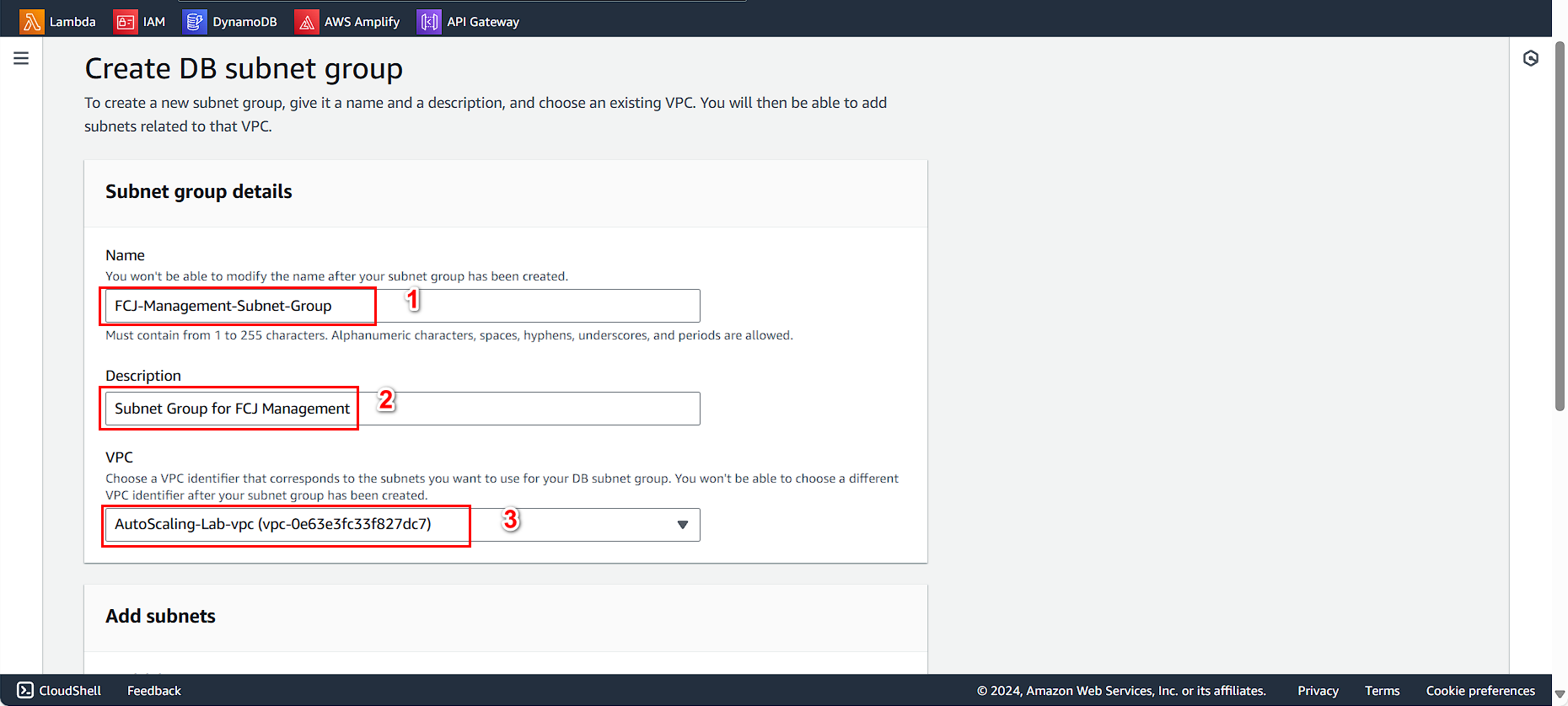

Configure the DB subnet group details:

  • For Name, enter FCJ-Management-Subnet-Group
  • For Description, enter Subnet Group for FCJ Management
  • Select the VPC you created earlier (AutoScaling-Lab)

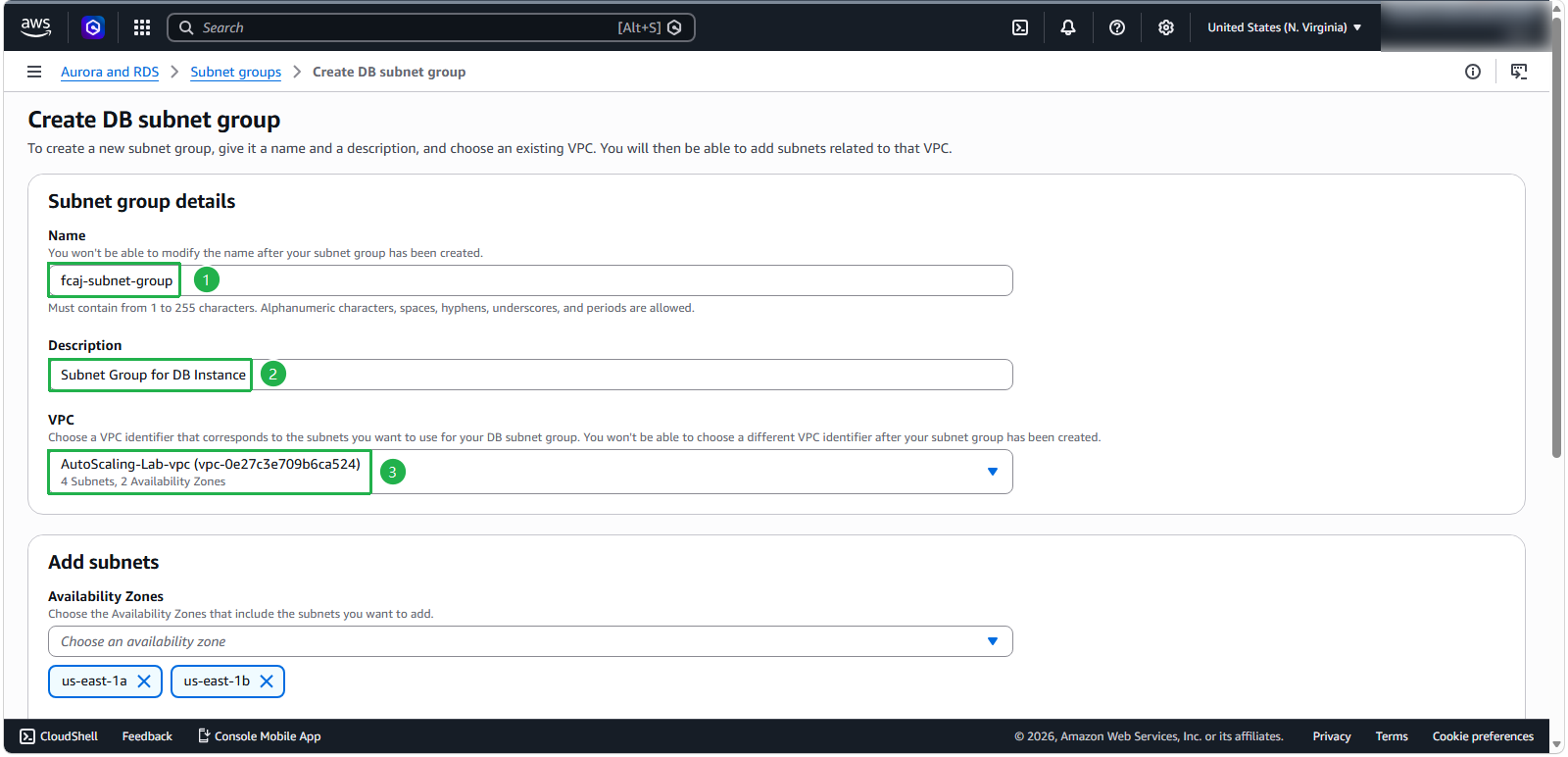

DB Subnet Group Details

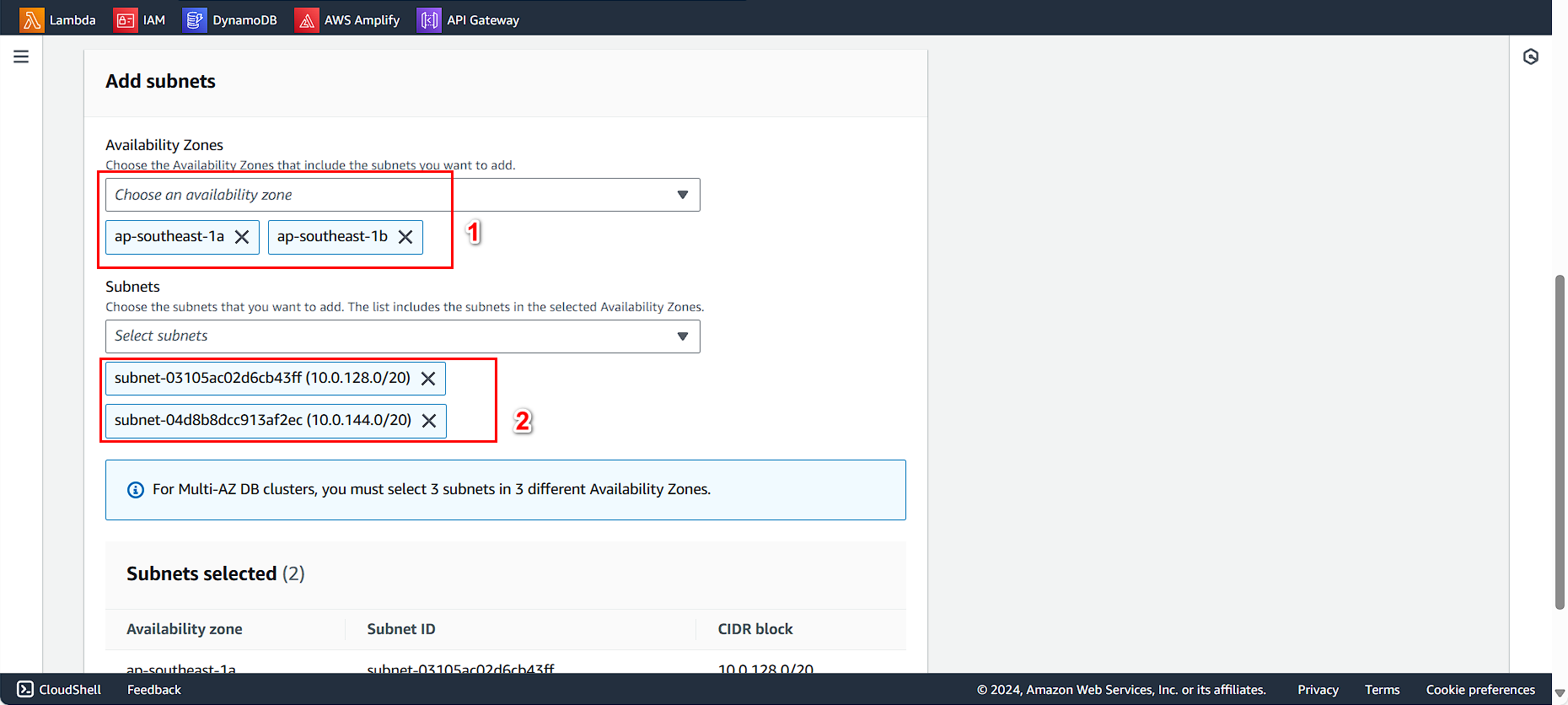

Configure the subnet selection:

  • Select multiple Availability Zones for redundancy
  • Choose the private subnets for enhanced security

🔒 Security Note: Always place your database instances in private subnets to prevent direct internet access, reducing your attack surface.

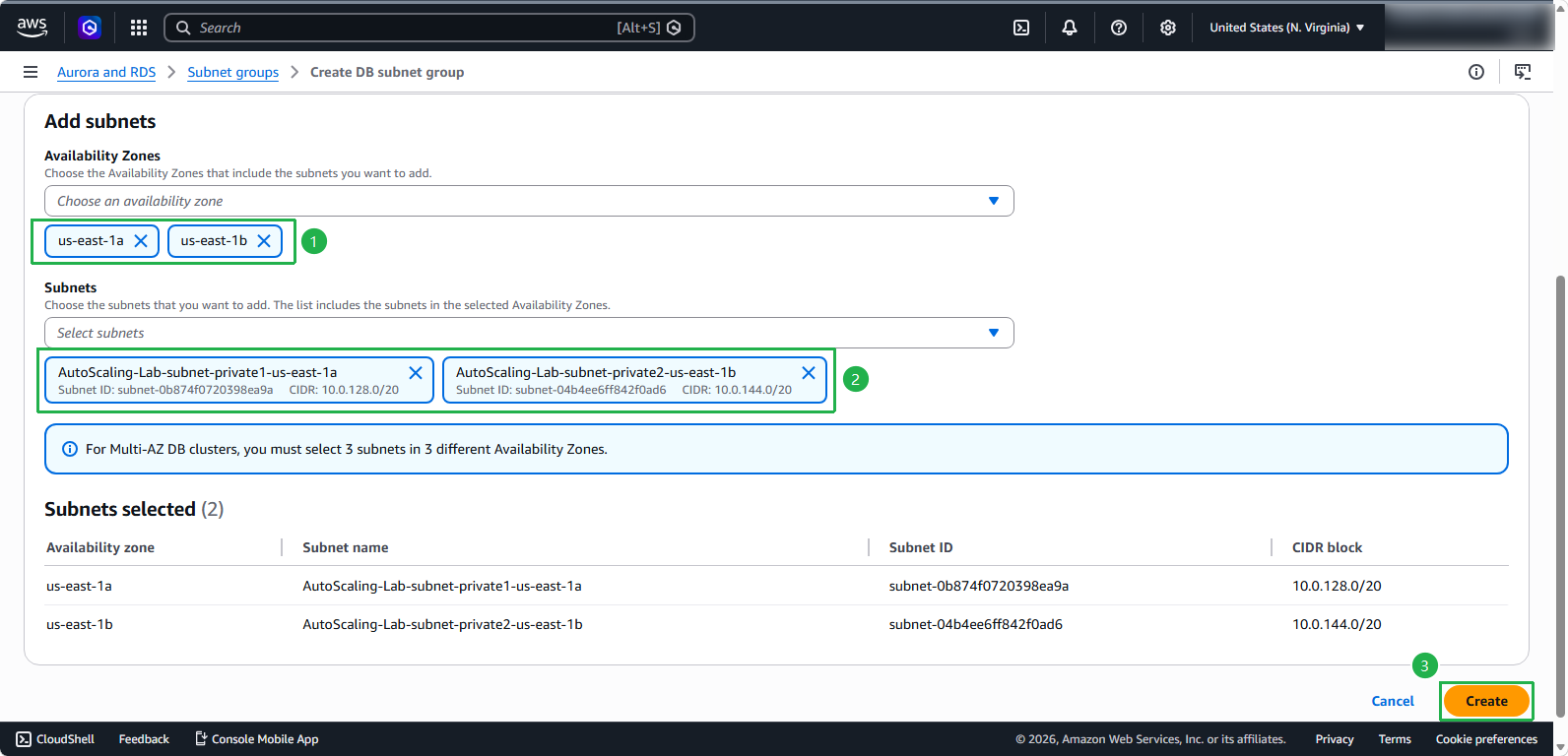

Subnet Selection

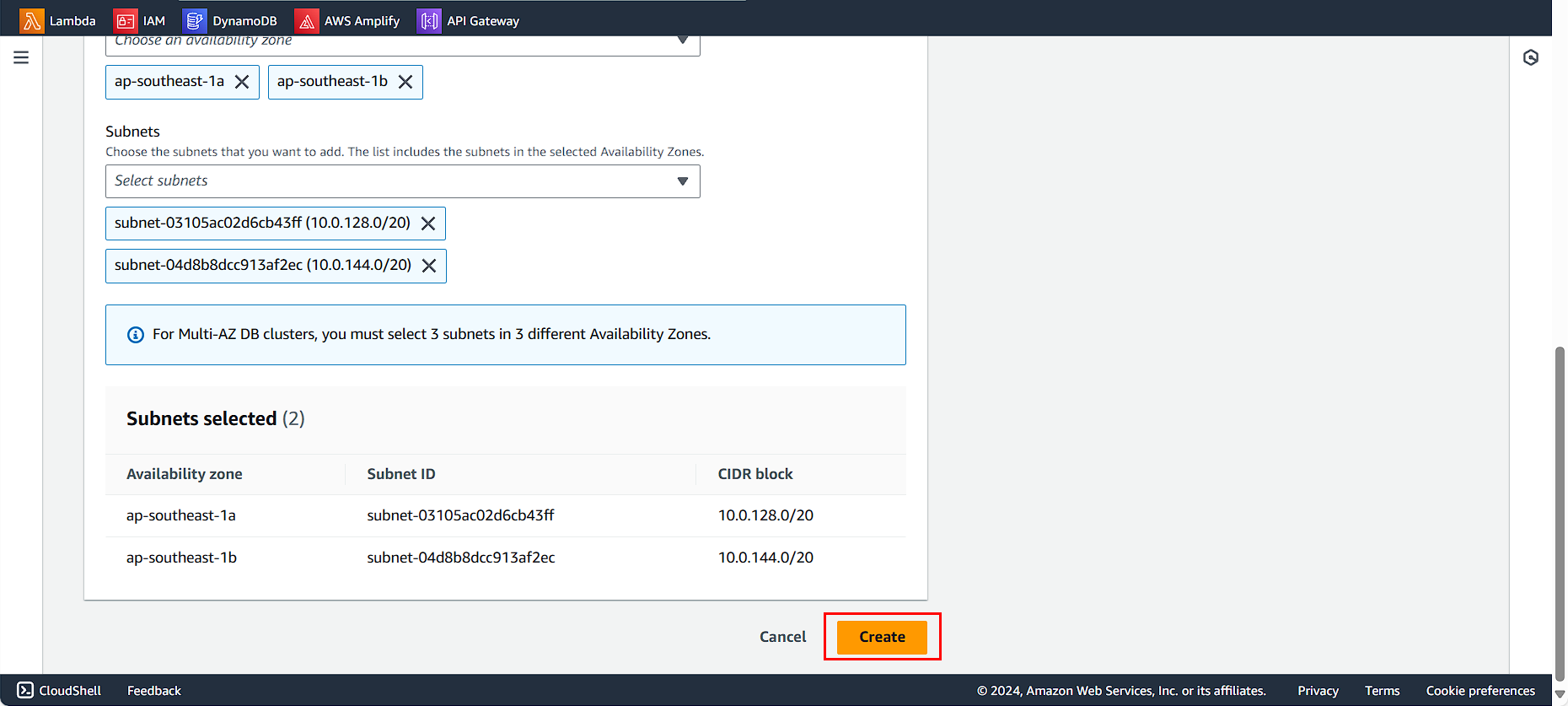

Complete the creation:

  • Click Create

Create Button

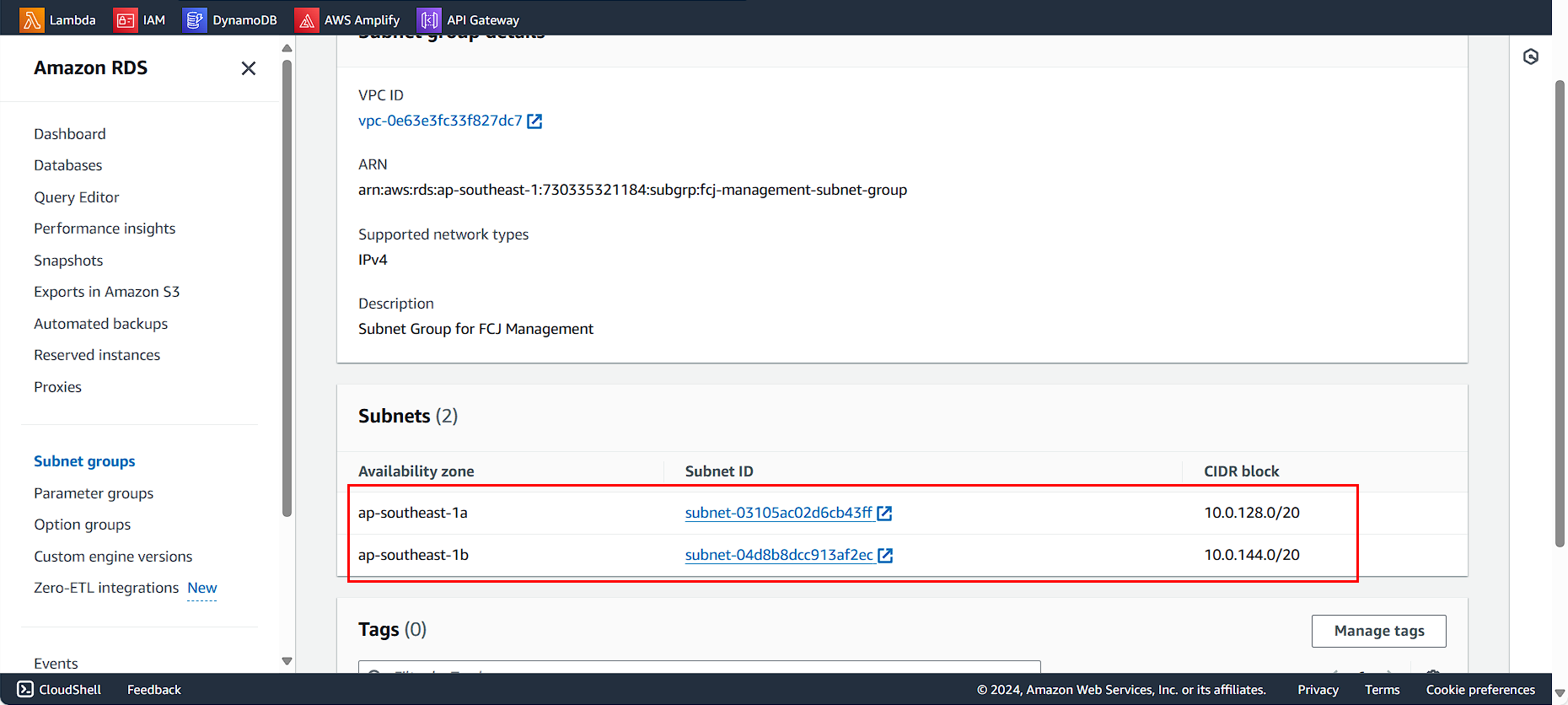

Verify the DB subnet group has been created successfully with multiple AZs:

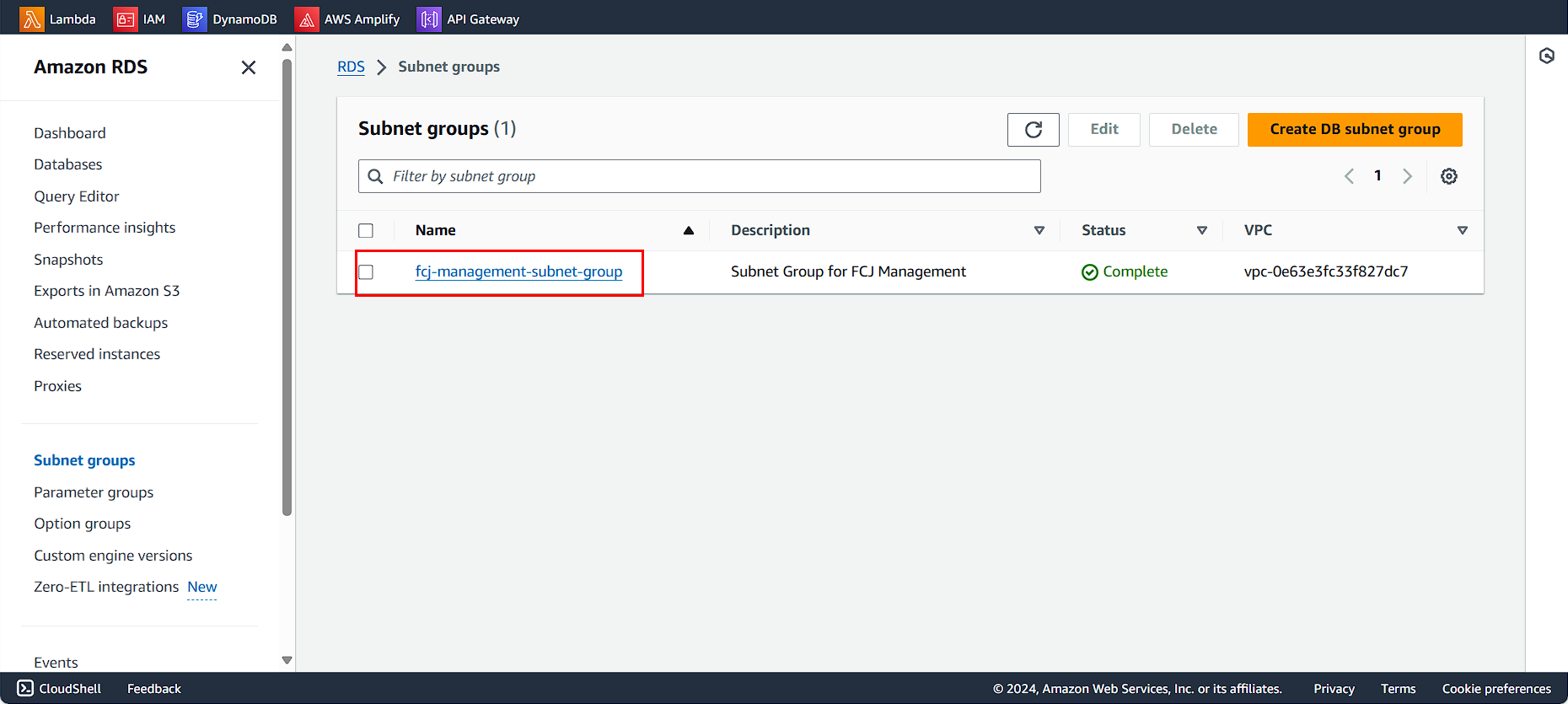

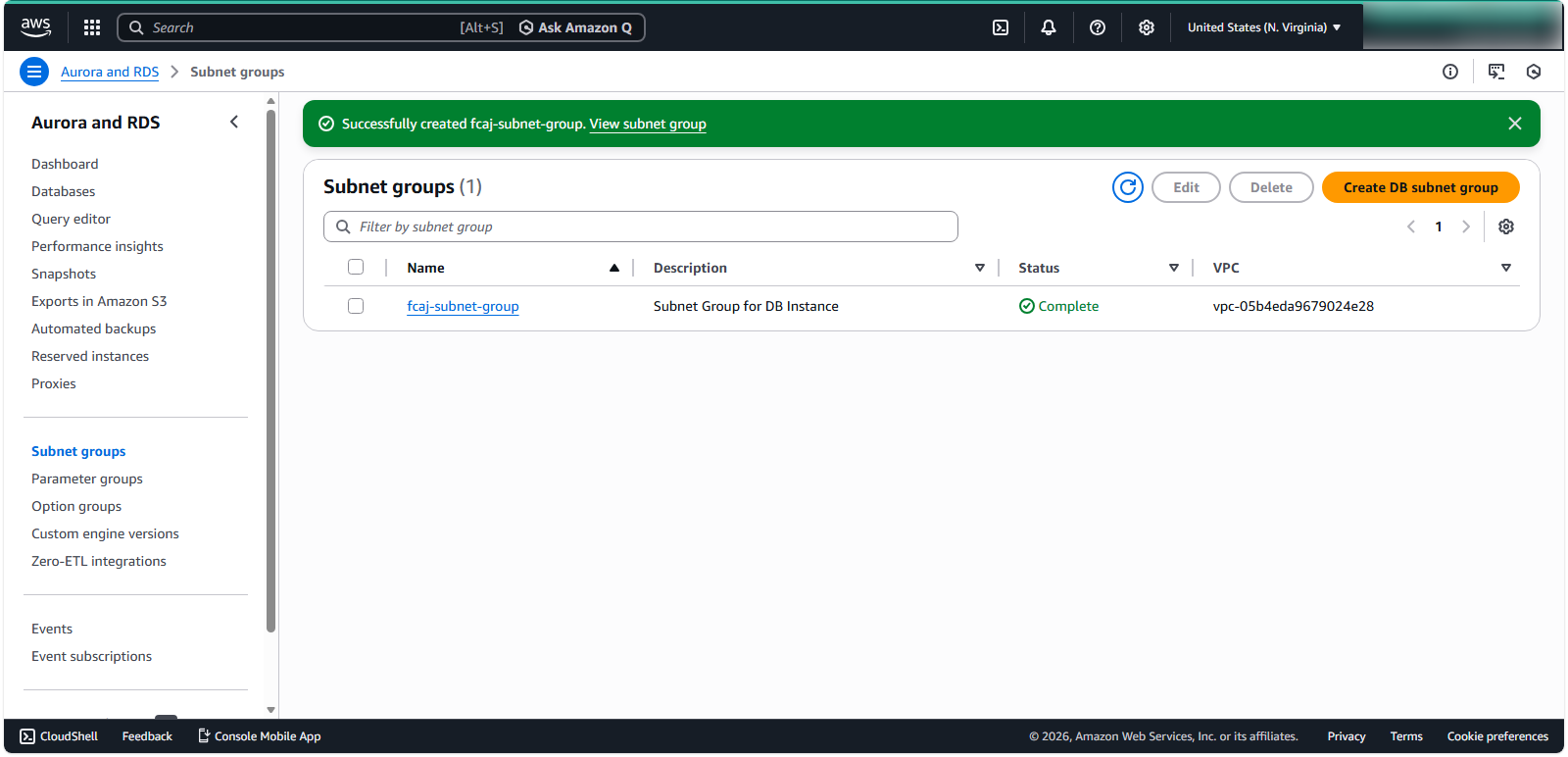

Subnet Group Created

Subnet Group Details

Launching an Amazon RDS Database Instance

ℹ️ Information: Amazon RDS makes it easy to set up, operate, and scale a relational database in the cloud. It provides cost-efficient and resizable capacity while automating time-consuming administration tasks.

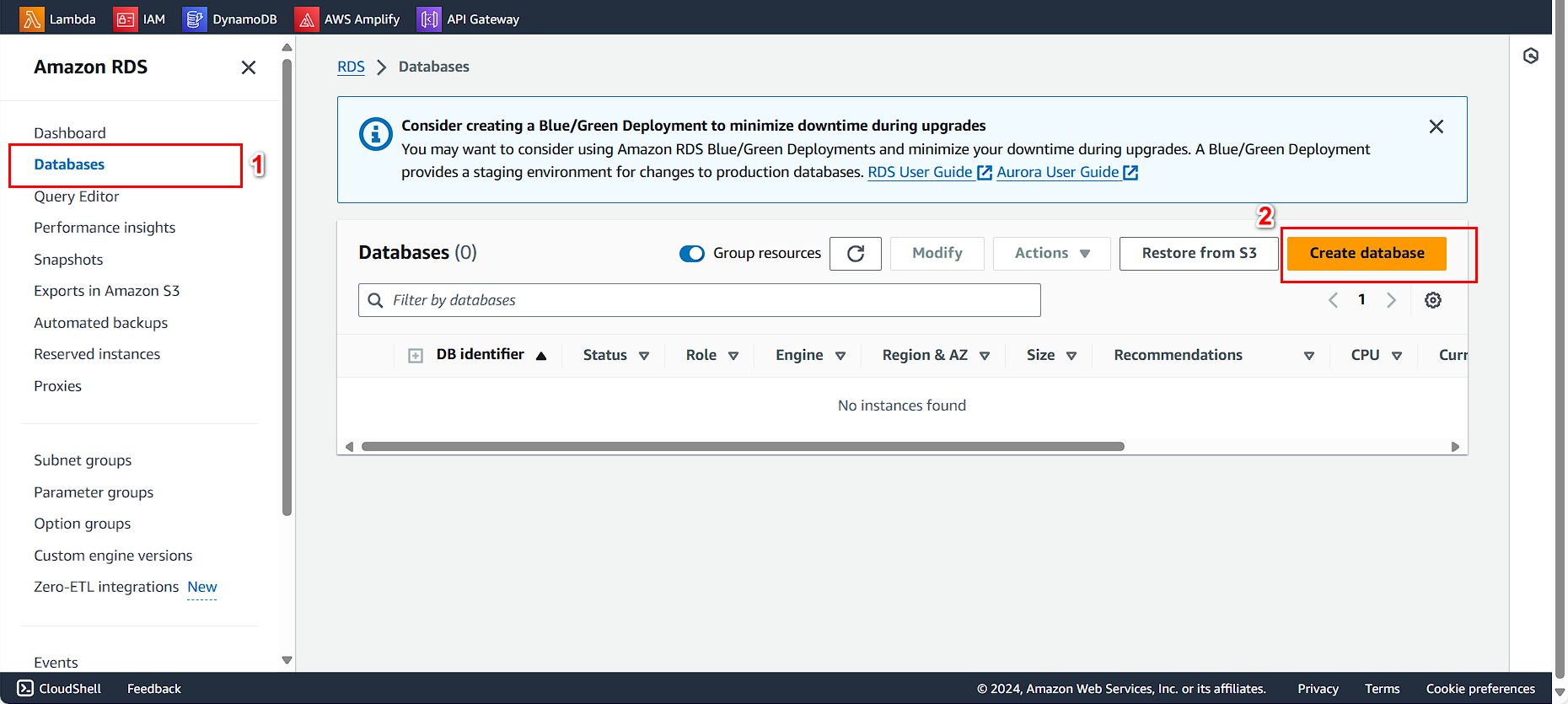

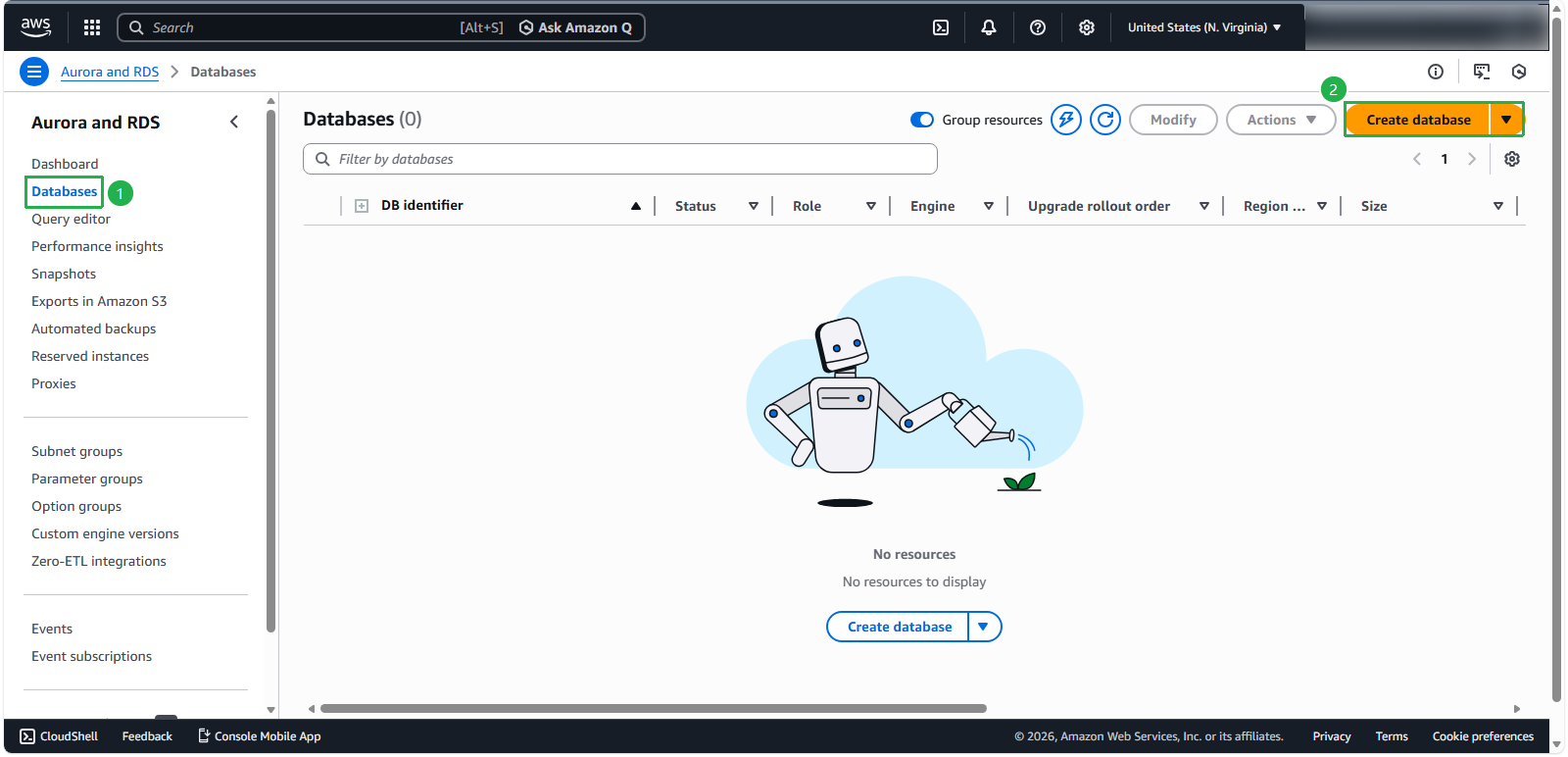

Navigate to the RDS console:

  • Select Databases from the left navigation panel
  • Click Create database

Create Database

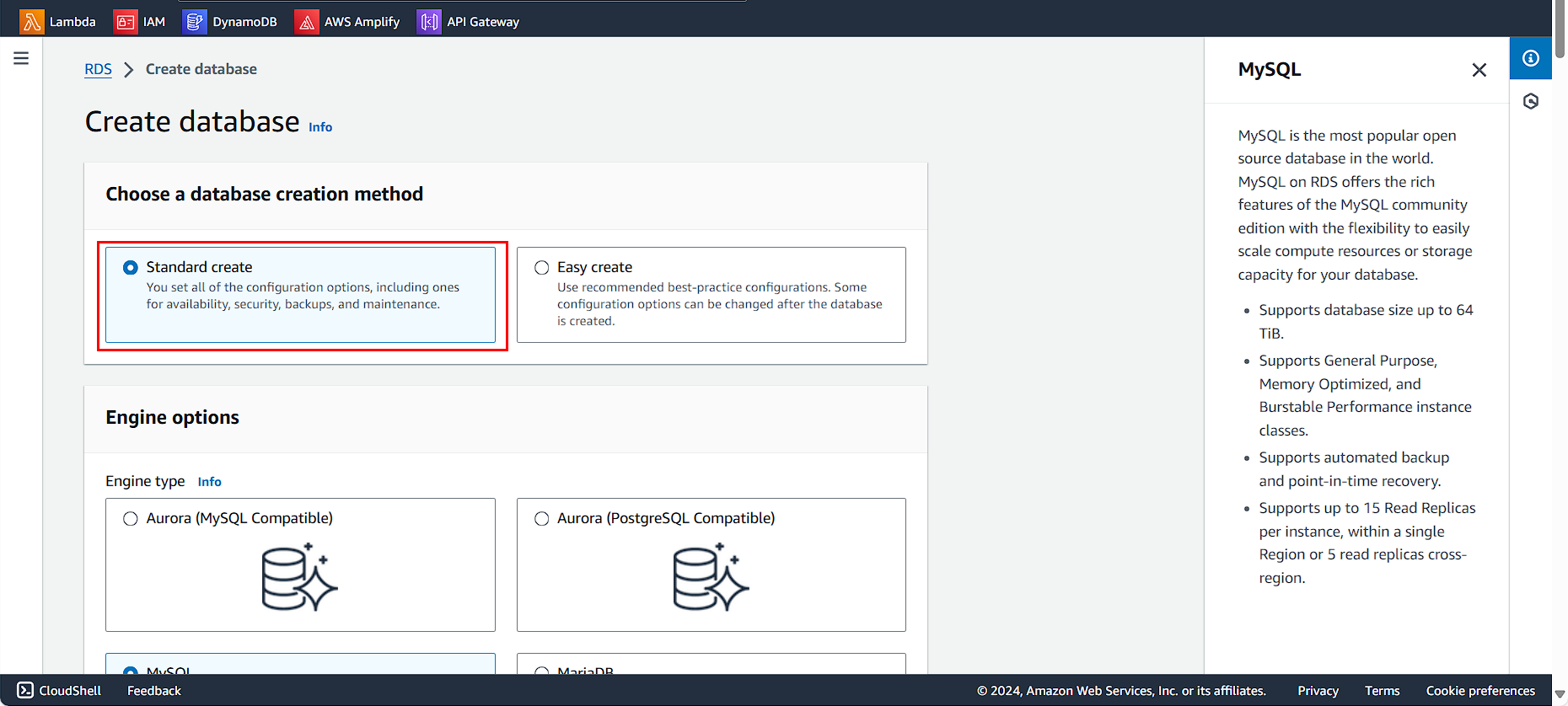

Select the database creation method:

  • Choose Standard create for full configuration options

Standard Create Option

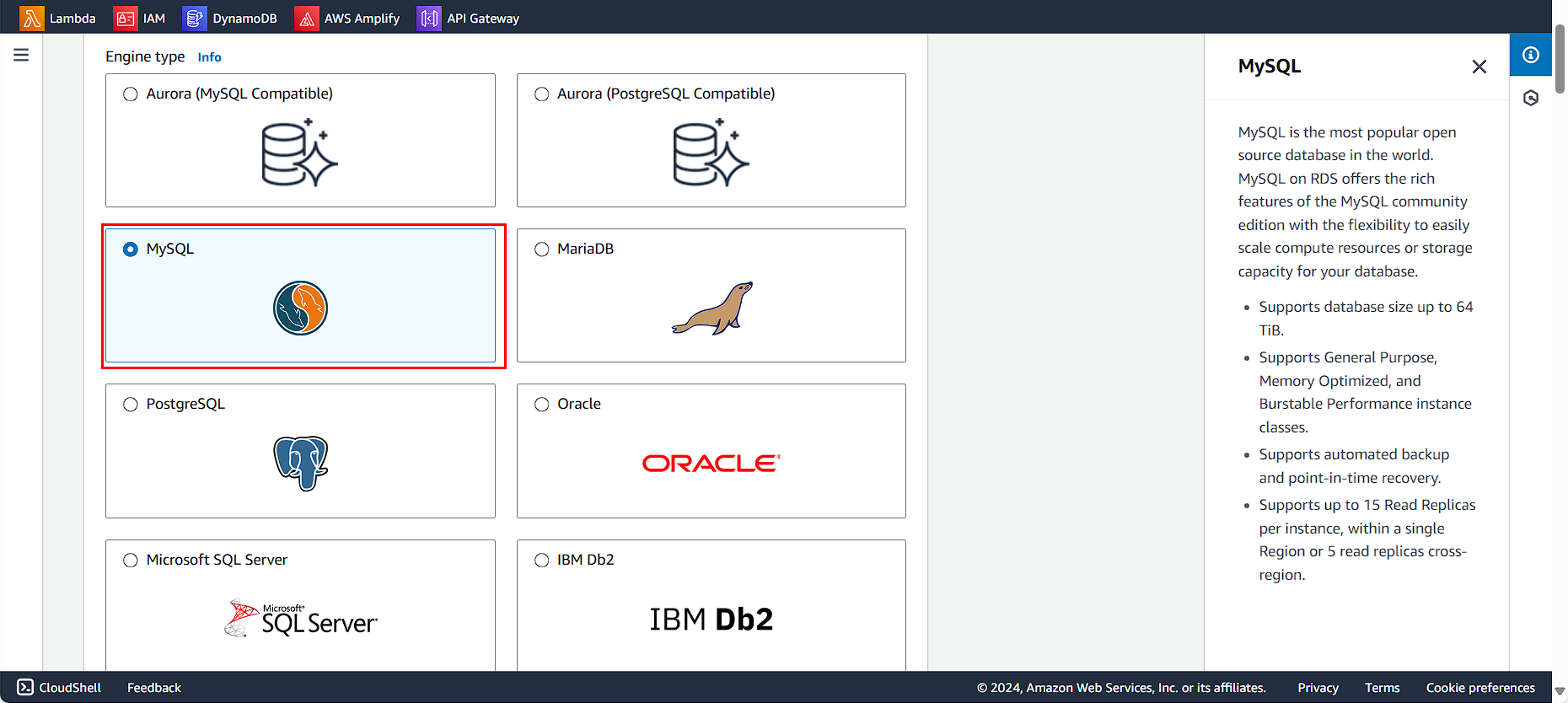

Select the database engine:

  • Choose MySQL

MySQL Engine Selection

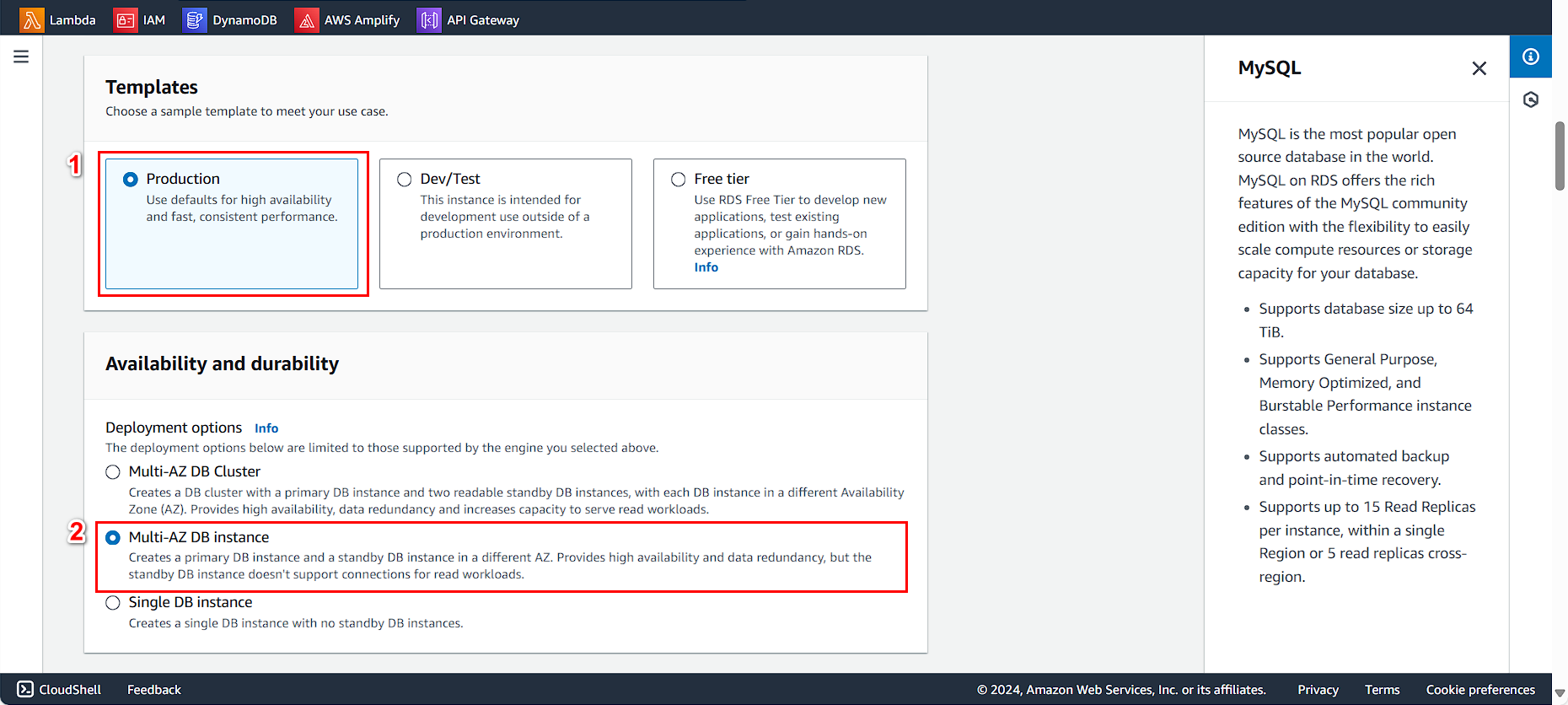

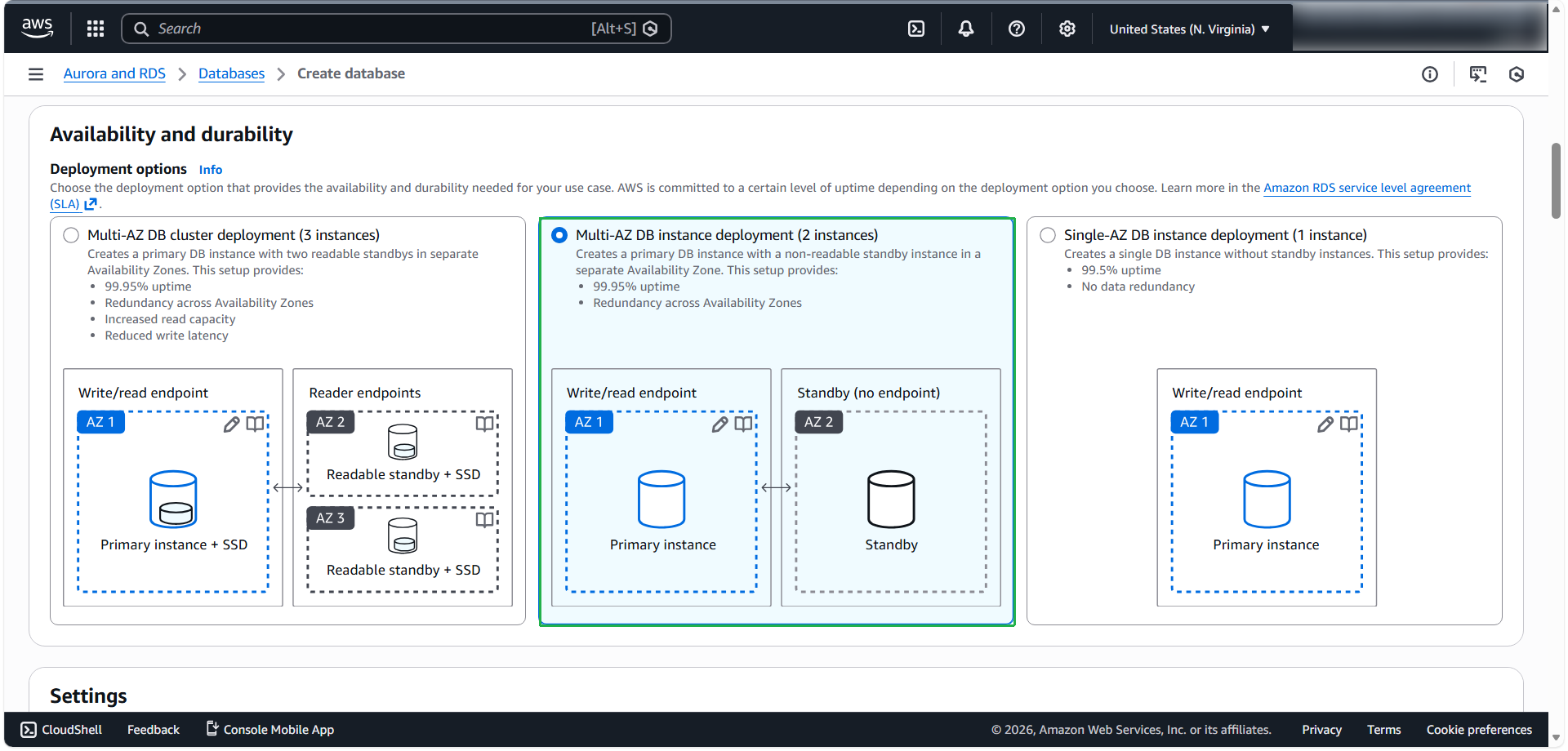

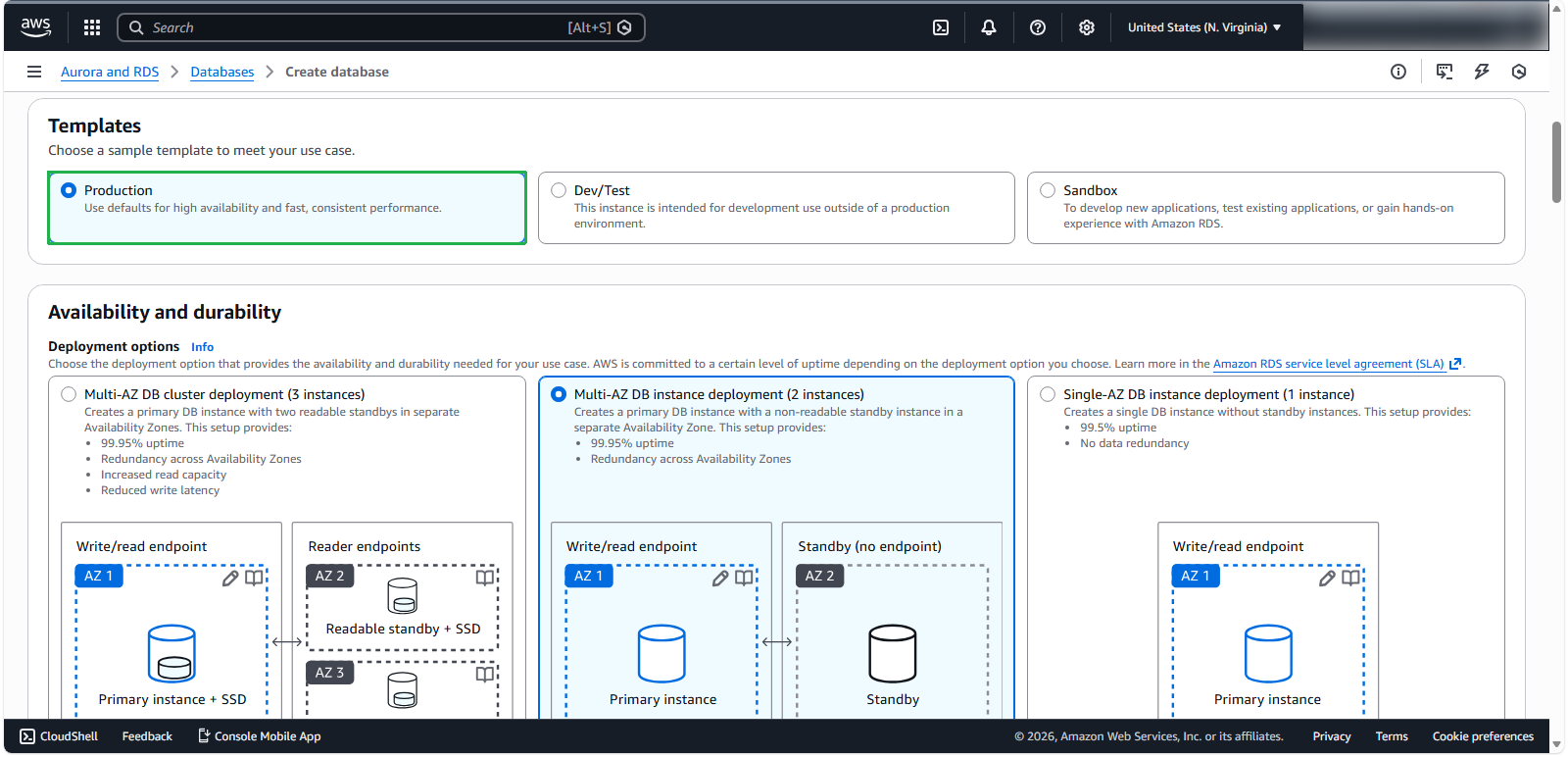

Configure the deployment template:

  • Select Production template
  • Choose Multi-AZ DB instance for high availability

💡 Pro Tip: Multi-AZ deployments enhance availability by automatically provisioning and maintaining a synchronous standby replica in a different Availability Zone.

Production Template

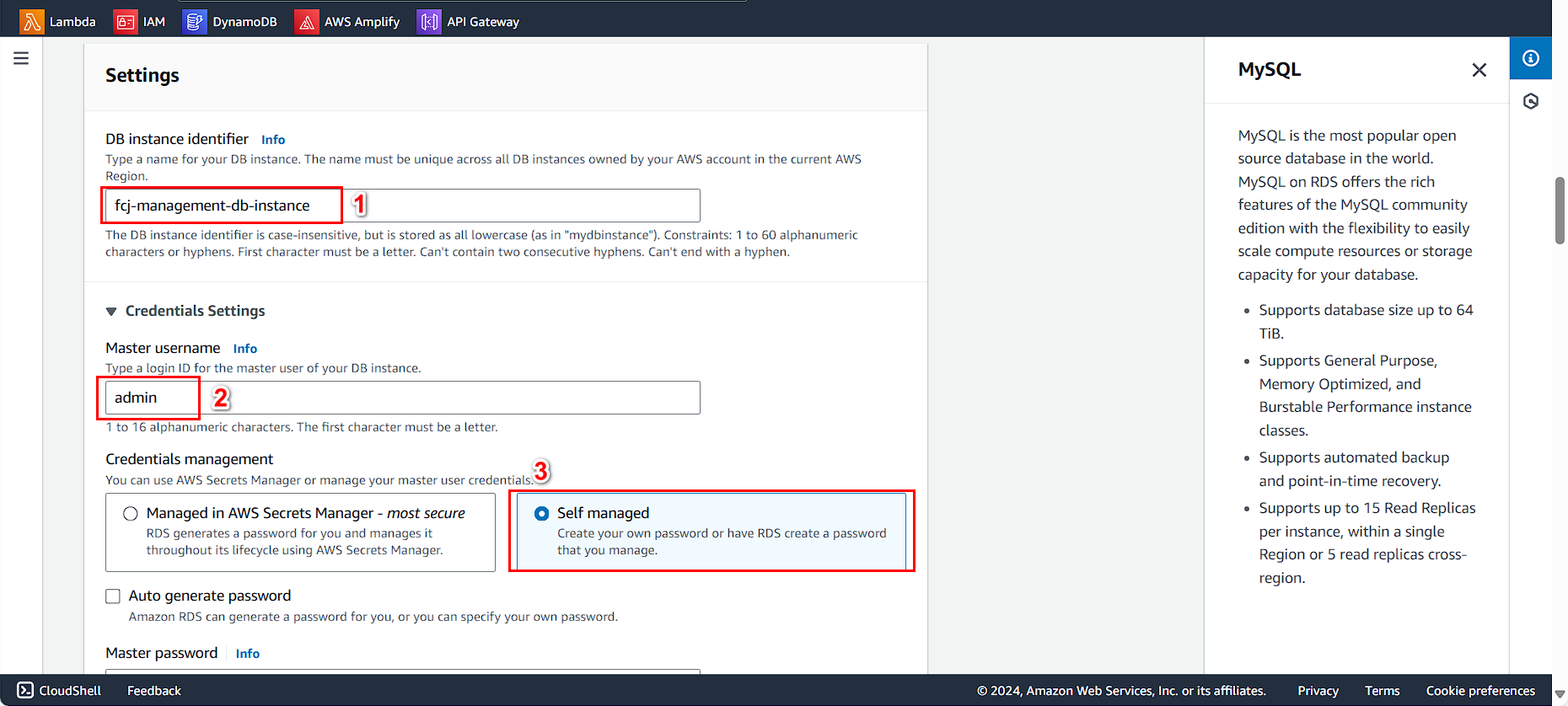

Configure instance details:

  • For DB instance identifier, enter fcj-management-db-instance
  • For Master username, enter admin
  • Select Self managed for credential management

Instance Configuration

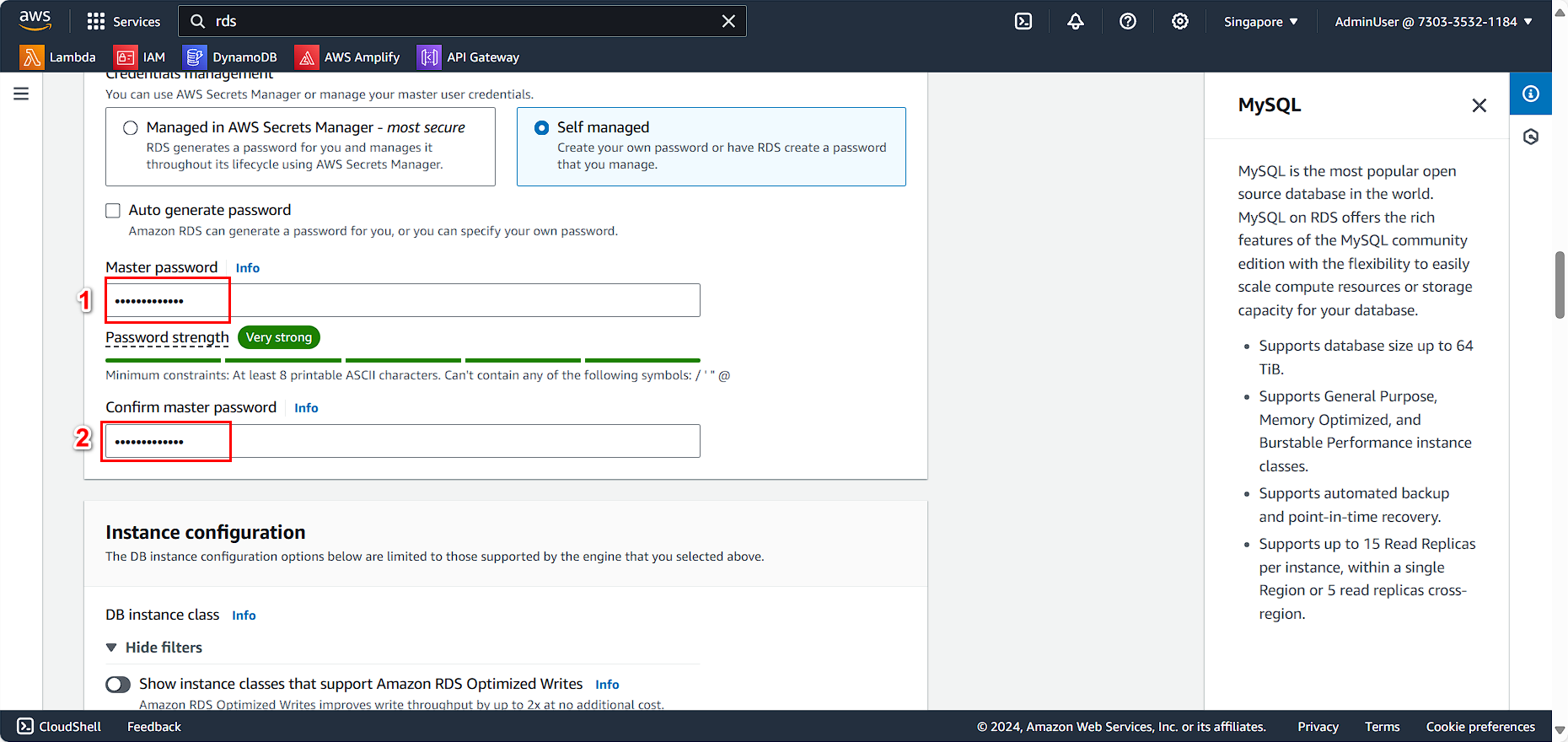

Set the database password:

  • For Master password, enter a strong password (for this lab: 123Vodanhphai)
  • Confirm the password

🔒 Security Note: In production environments, always use complex passwords and consider using AWS Secrets Manager to automatically rotate credentials.

Password Configuration

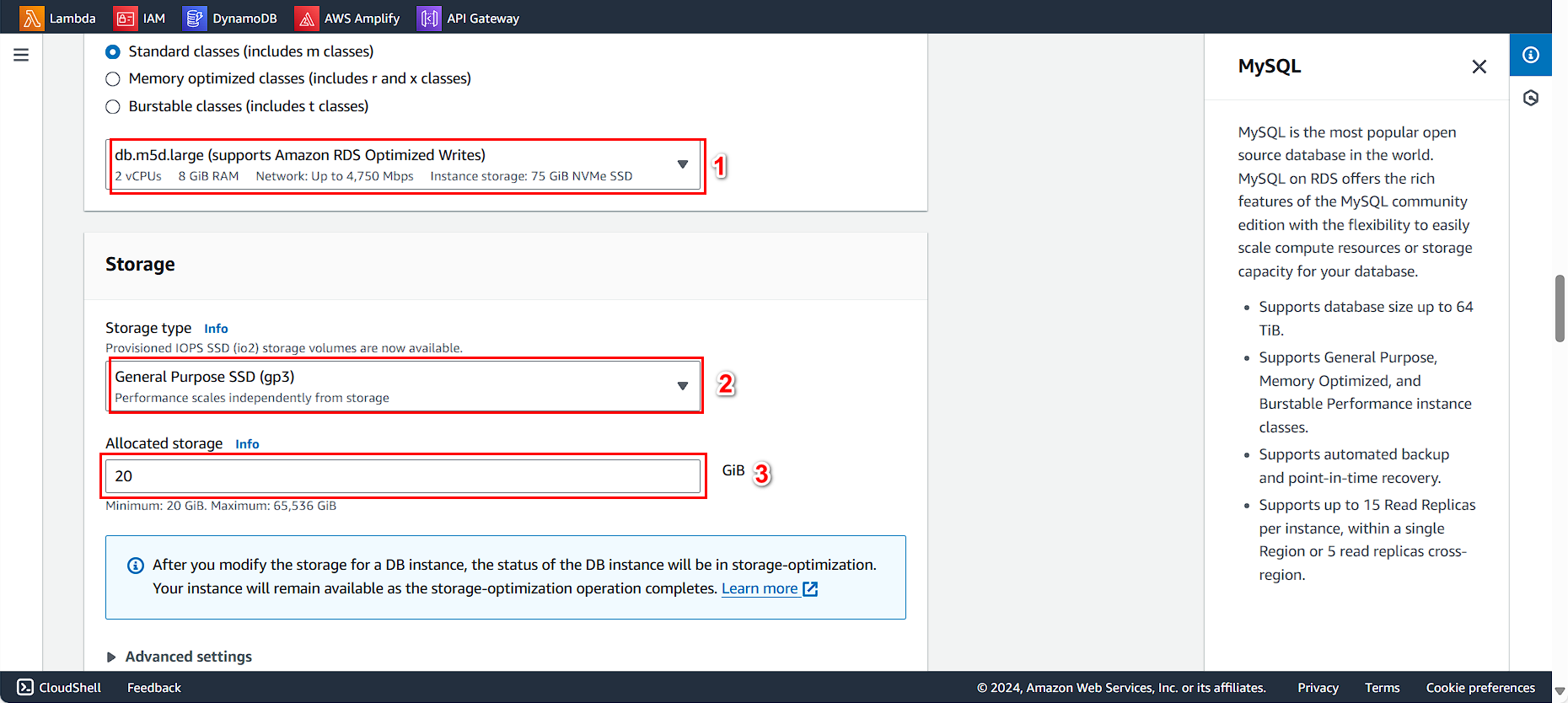

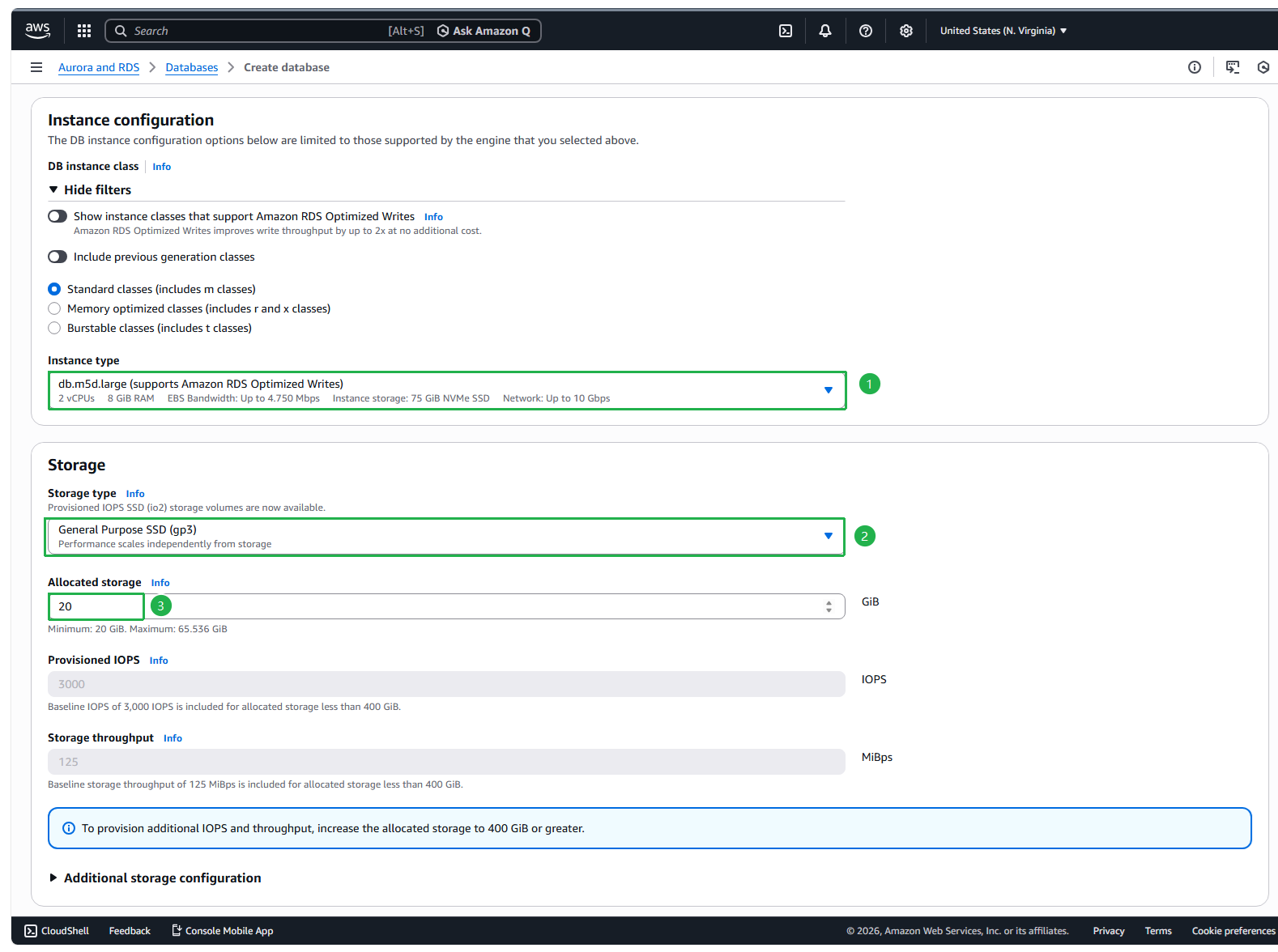

Configure instance specifications:

  • Select db.m5d.large for the instance class
  • Choose General Purpose SSD (gp3) for storage type
  • Set Allocated storage to 20 GiB

Instance Specifications

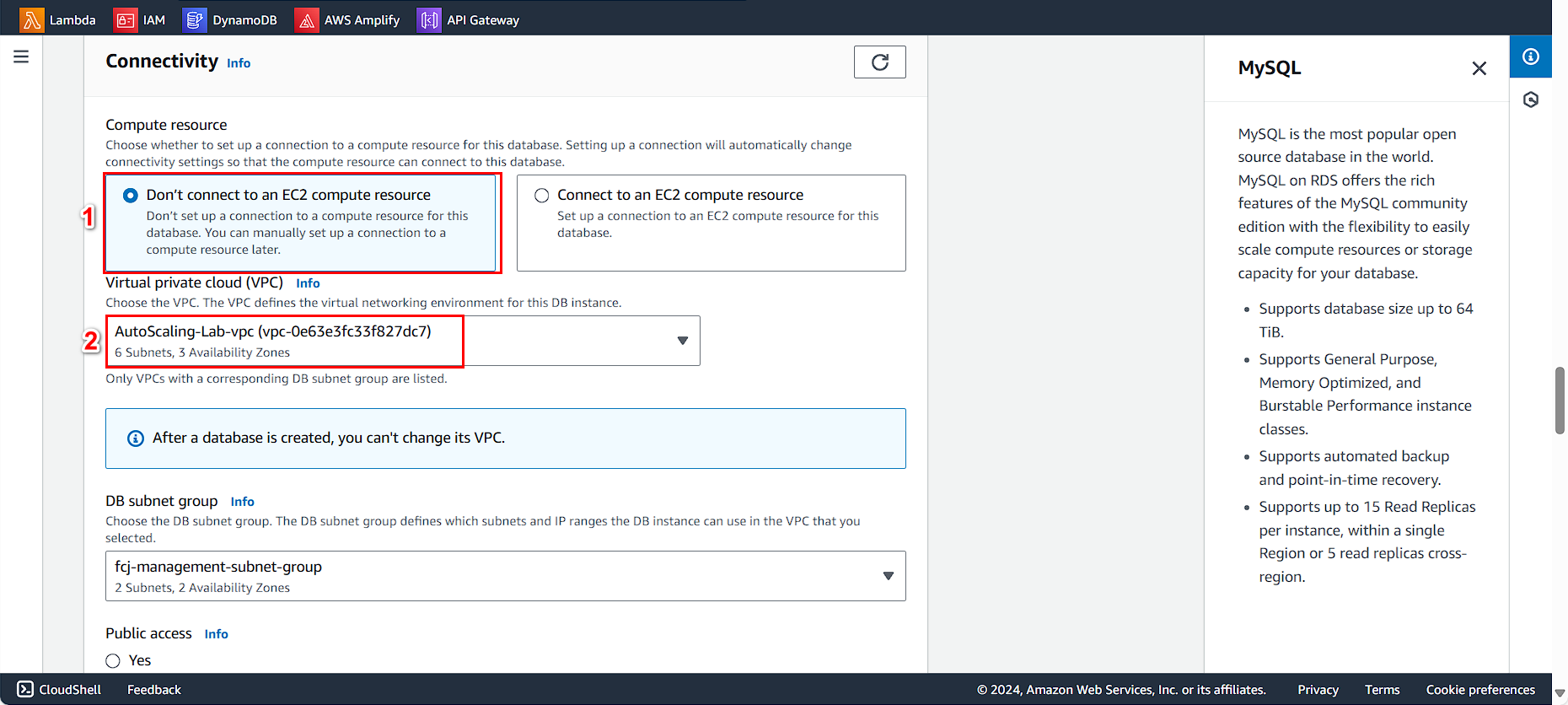

Configure connectivity settings:

  • Select Don’t connect to an EC2 compute resource
  • For VPC, select your created VPC (AutoScaling-Lab)
  • For Subnet group, choose the subnet group you created earlier

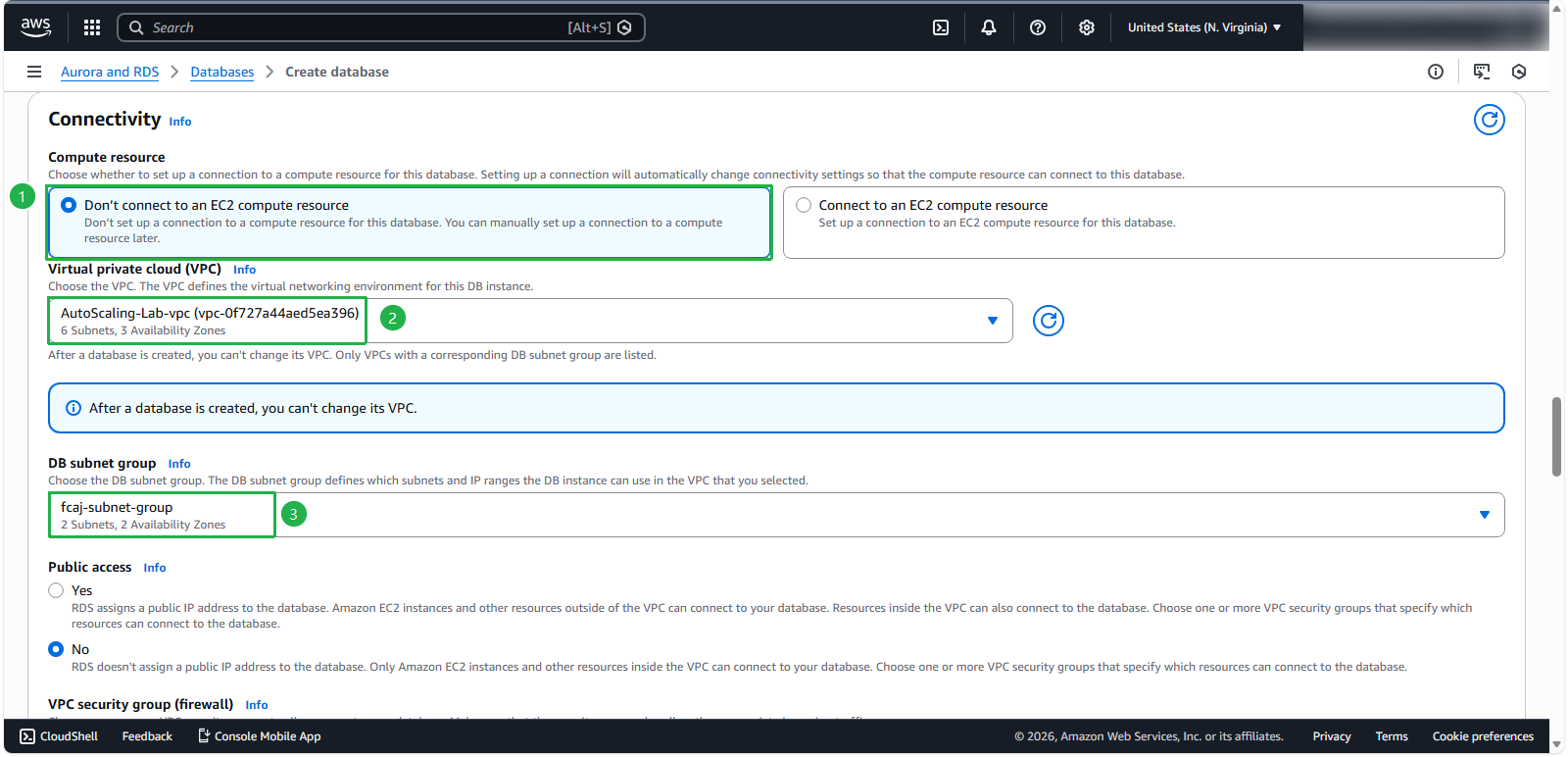

Connectivity Configuration

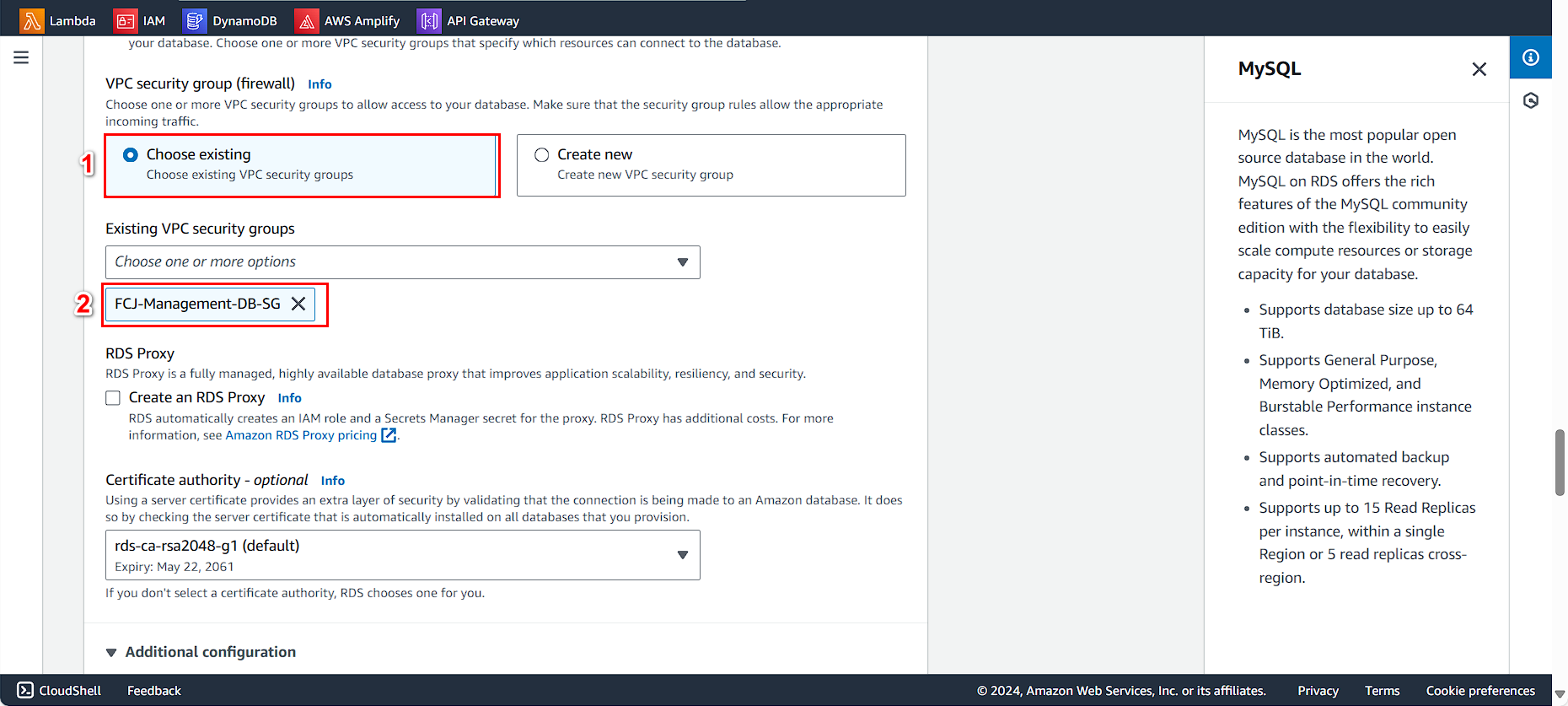

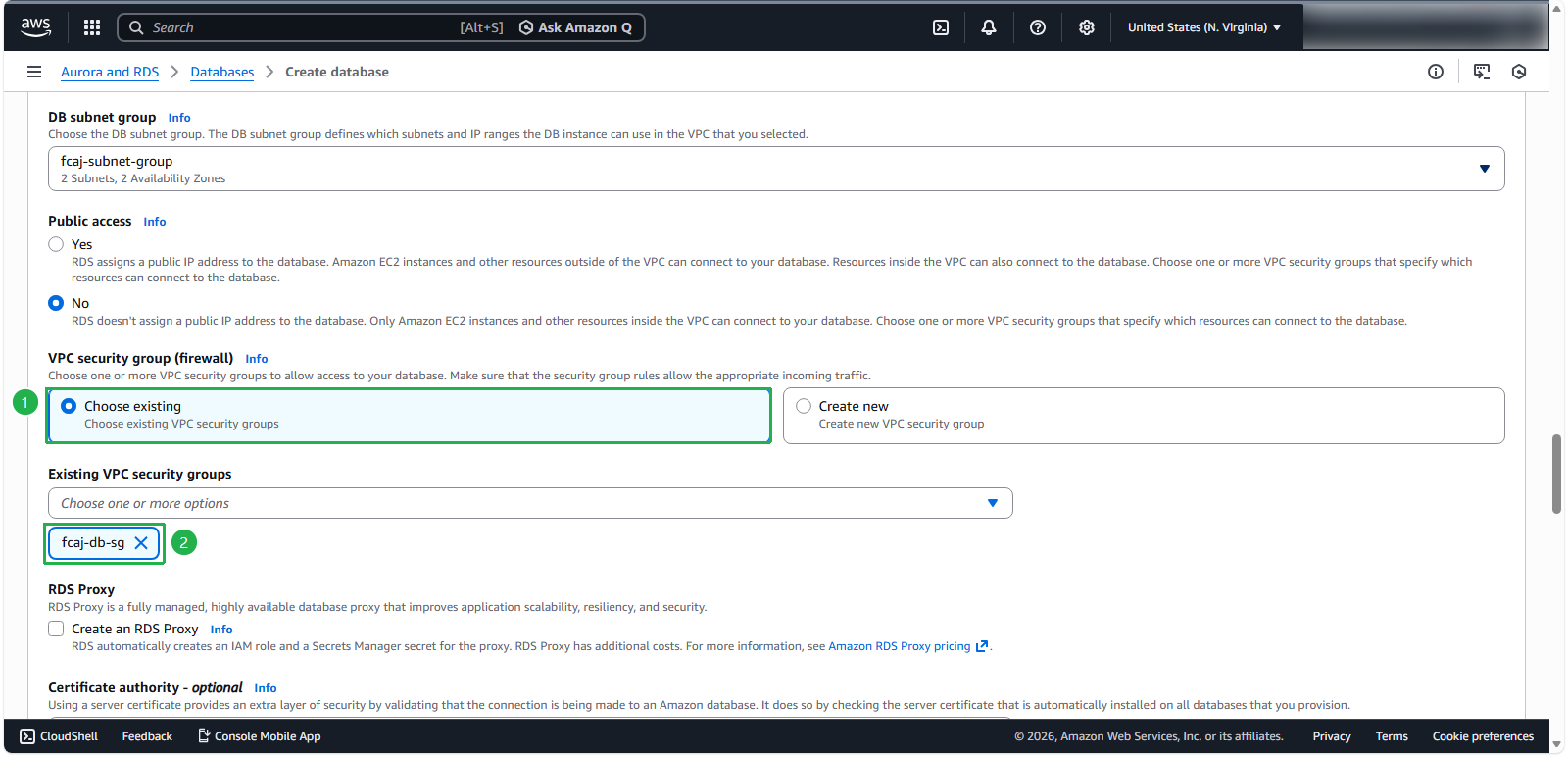

Configure security settings:

  • For VPC security group, select Choose existing
  • For Security Group, select FCJ-Management-DB-SG

🔒 Security Note: Using dedicated security groups for your database tier helps maintain proper network segmentation and access control.

Security Configuration

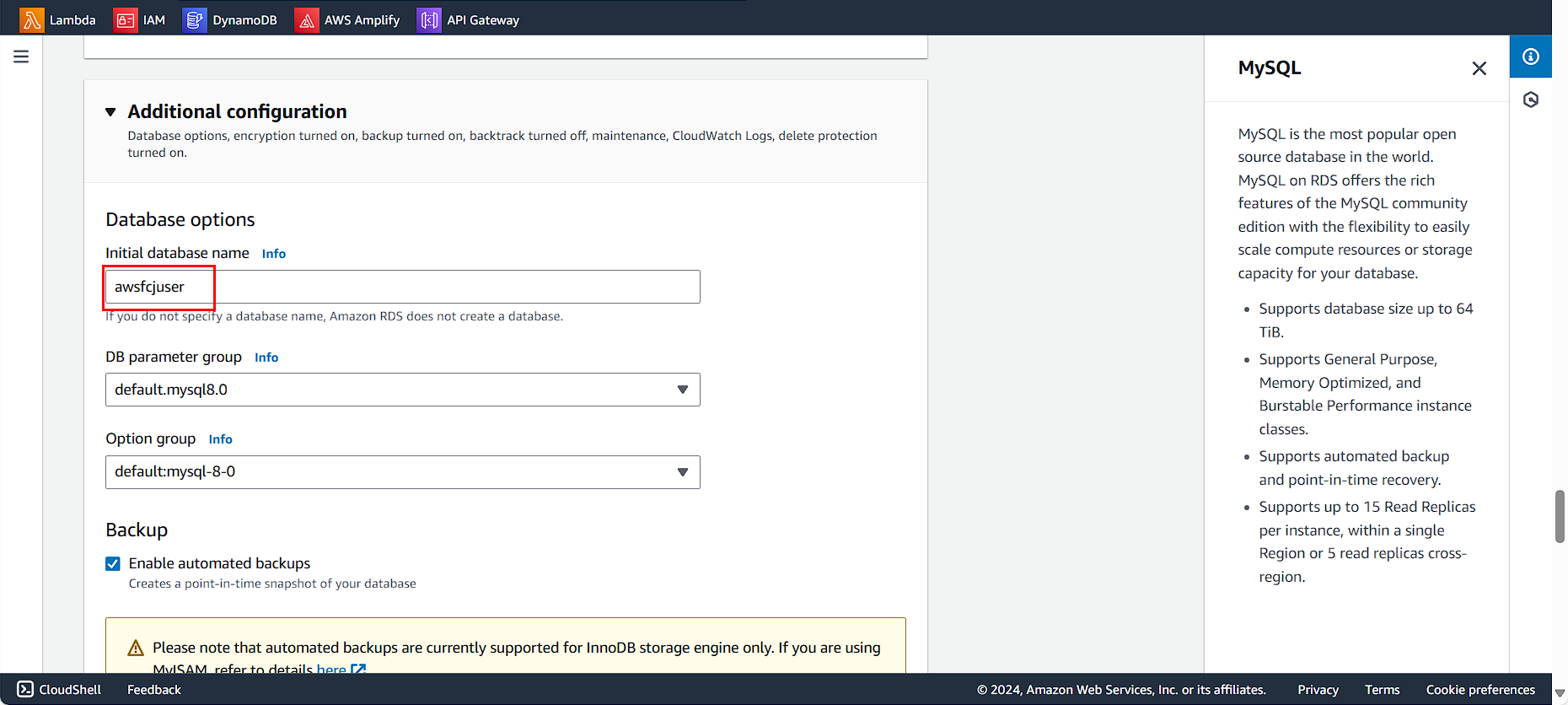

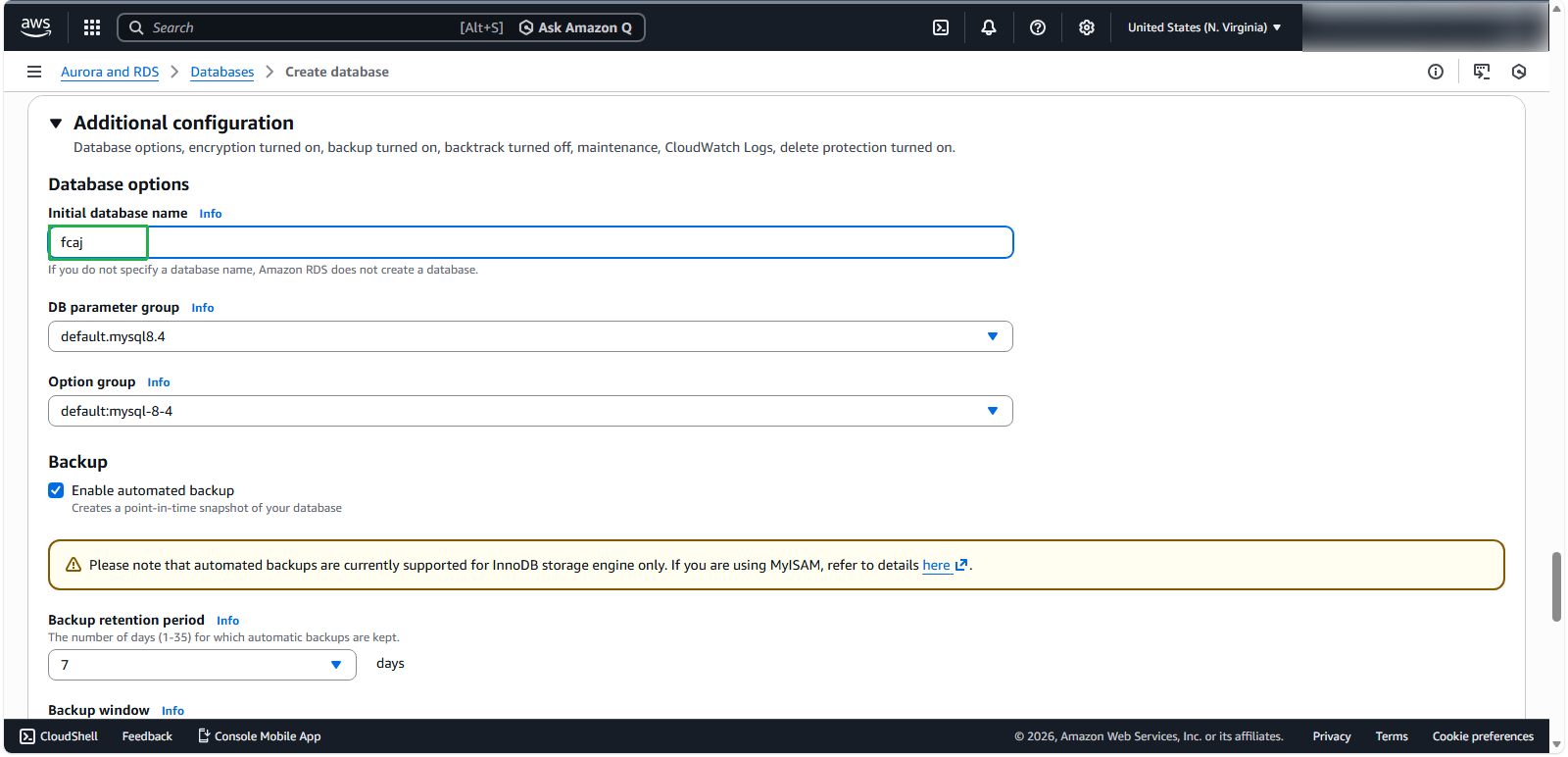

Configure initial database settings:

  • Set the initial database name to awsfcjuer
  • Leave other settings at their default values

Initial Database Configuration

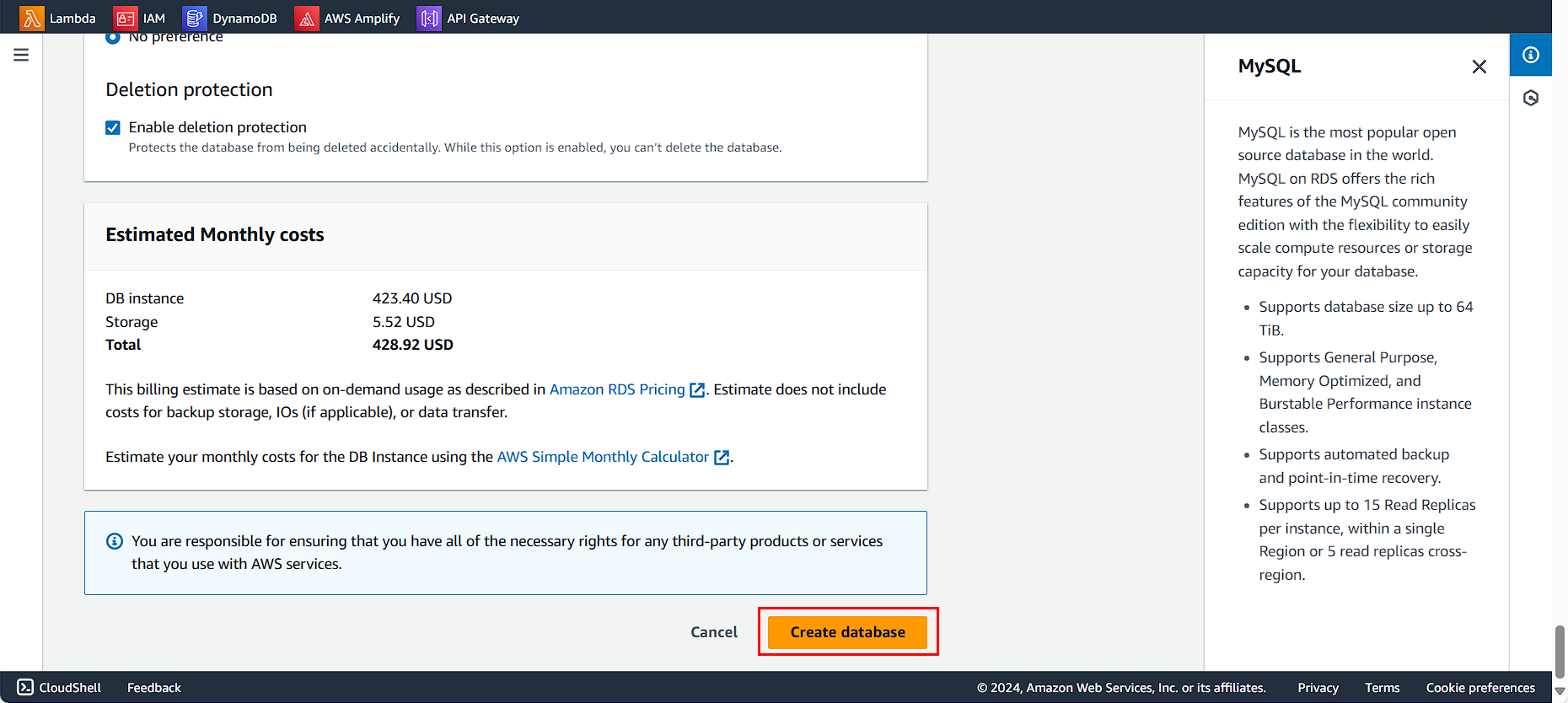

Complete the database creation:

  • Click Create database

Create Database Button

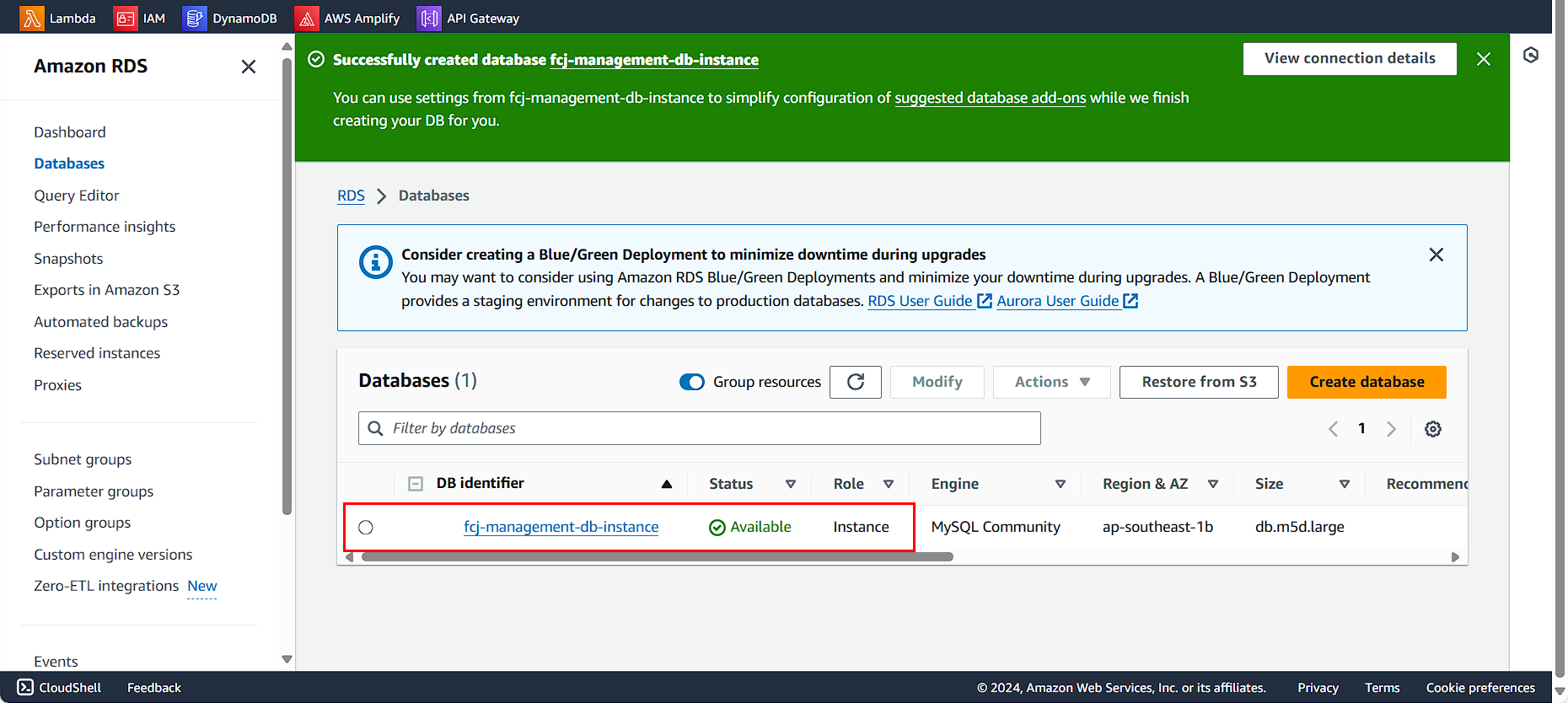

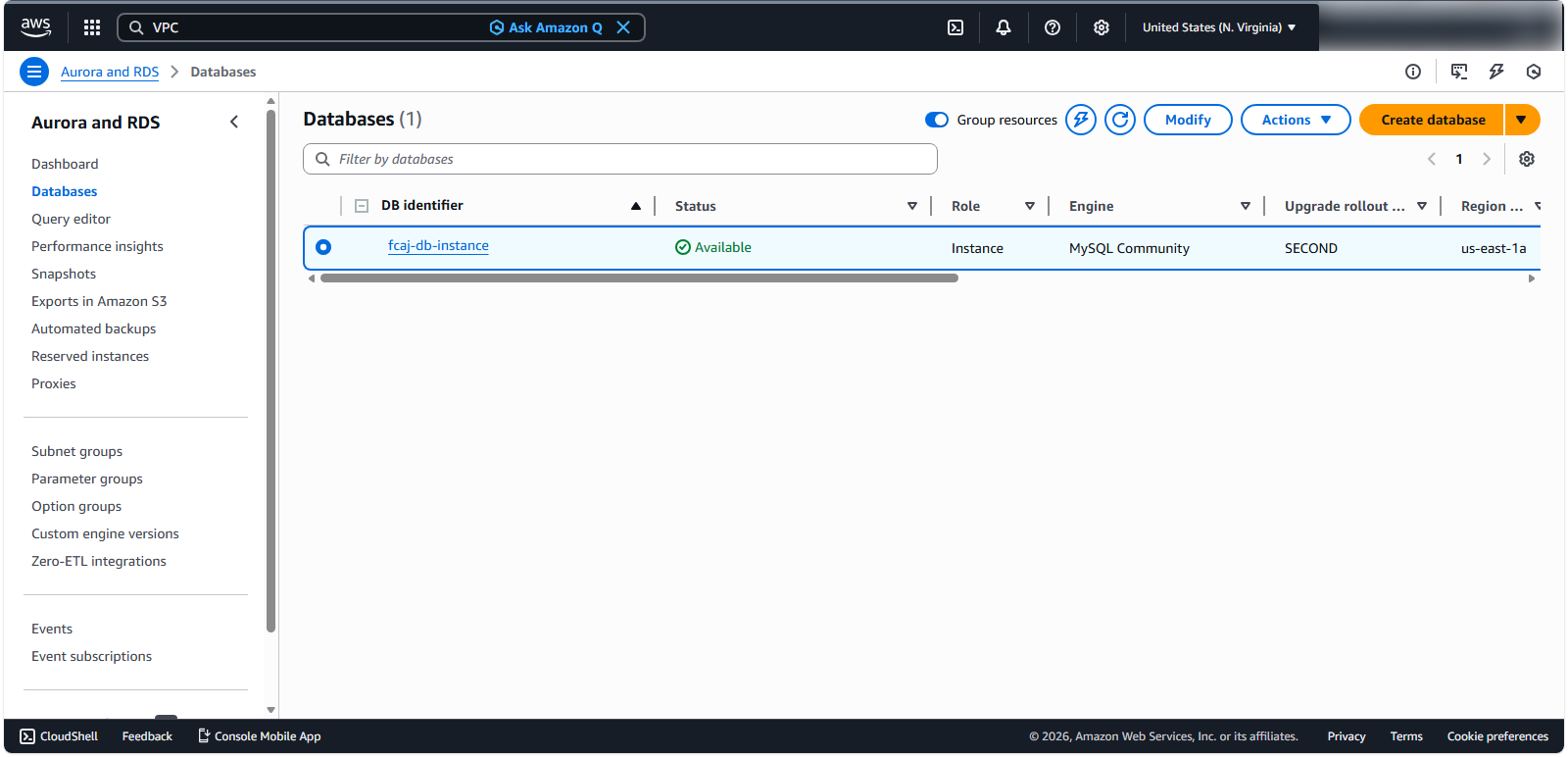

Verify successful database creation:

Database Created Successfully

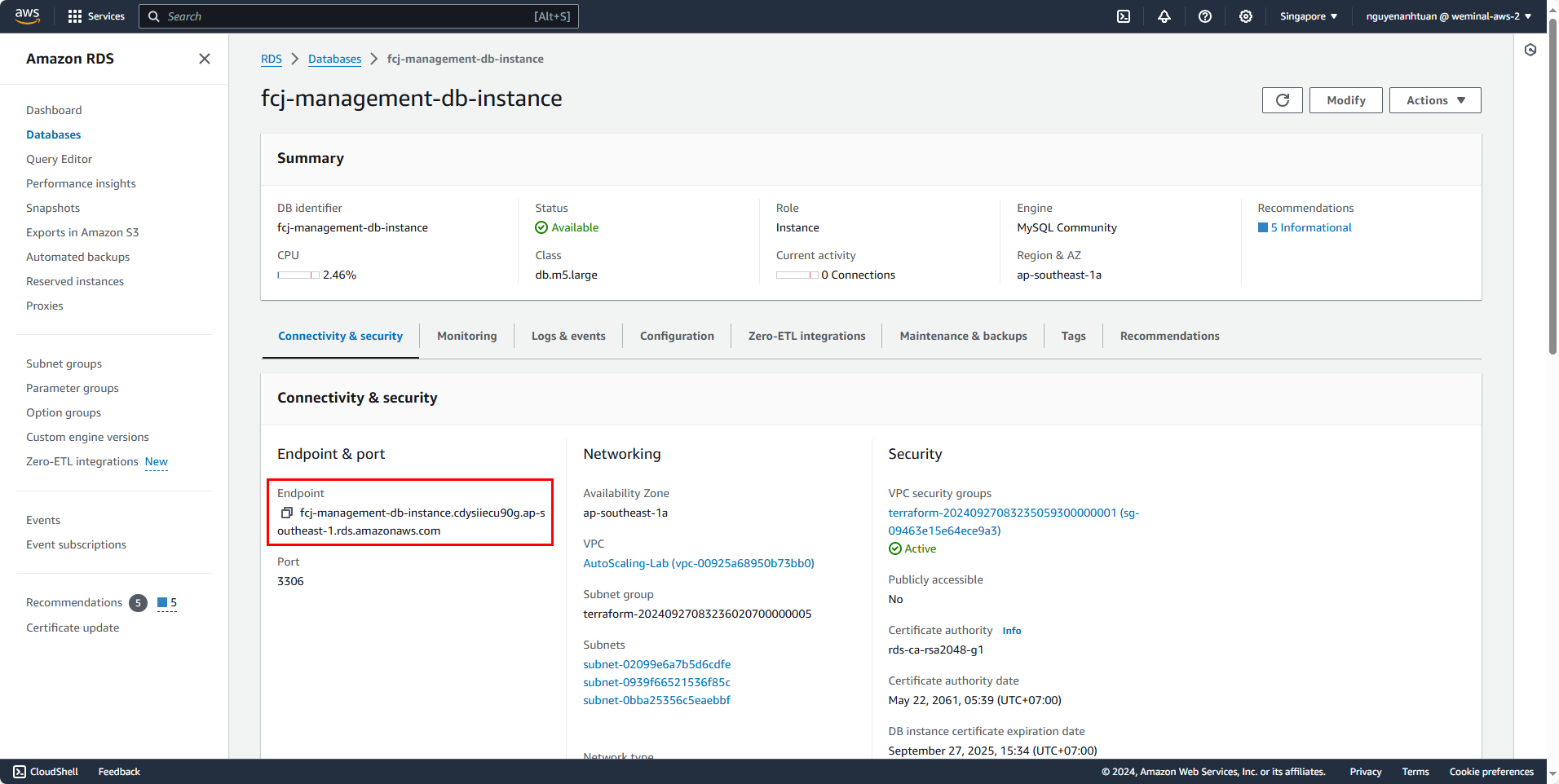

Note the database endpoint and port for future reference:

💡 Pro Tip: You’ll need this endpoint information when configuring your application to connect to the database.

Database Endpoint Information
